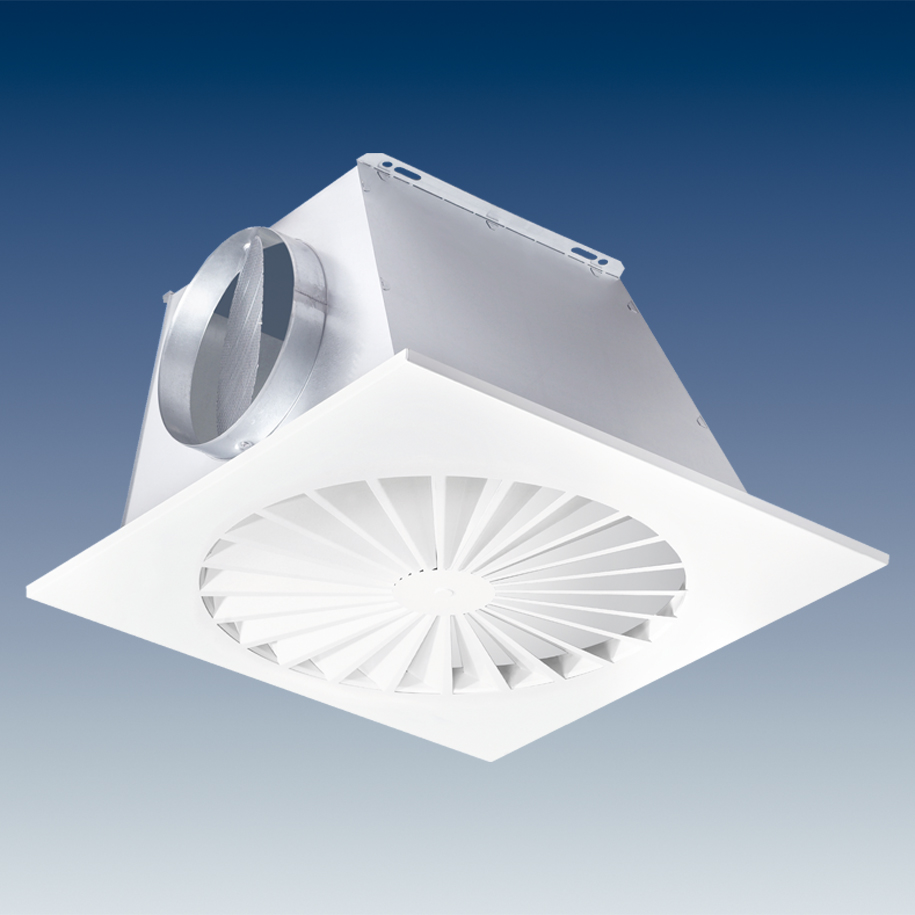

Twist outlet – RA-N3

Product specification

  • Twist outlet – RA-N3

    For installation flush with ceiling or freely suspended.
    • Volume flow rate range: ​26 – 400 l/s [95 – 1 440 m³/h]
    • Nominal sizes: DN 355 and DN 500
    • ​Discharge height: ​2.4 – 4.5 m
    • Temperature differential:
    • ​–12 K to +5 K
    • (+10 K up to 3 m ceiling height)

  • Category

    Air outlets - Ceiling

Description

  • Radial, horizontal jet dispersion
  • Connection to flexible or spiral seam duct via reducer or connection box
  • Convenient screw fastening from below
  • Perforated cover screen available on request
  • Also available as return air inlet

Downloads

E1.1.3.3_RA-N3_Radial outlet
