Swivel jet outlet – SW

Product specification

  • Swivel jet outlet – SW

    For mounting on walls, pillars or galleries, where large penetration depths and high volume flow rates per air outlet are required.​
    • Volume flow rate range: ​110 – 2 800 l/s [400 – 10 000 m³/h]
    • ​Nominal sizes: DN 315, DN 400, DN 600 and DN 710
    • ​Penetration depth: up to 30 m
    • ​Discharge height: 4 – 6 m

  • Video

    Play Video

  • Category

    Air outlets - Wall

Description

  • Radial, horizontal jet dispersion
  • Connection to flexible or spiral seam duct via reducer or connection box
  • Convenient screw fastening from below
  • Perforated cover screen available on request
  • Also available as return air inlet

Downloads

E1.2.4_SW_Swivel jet outlet_wTC

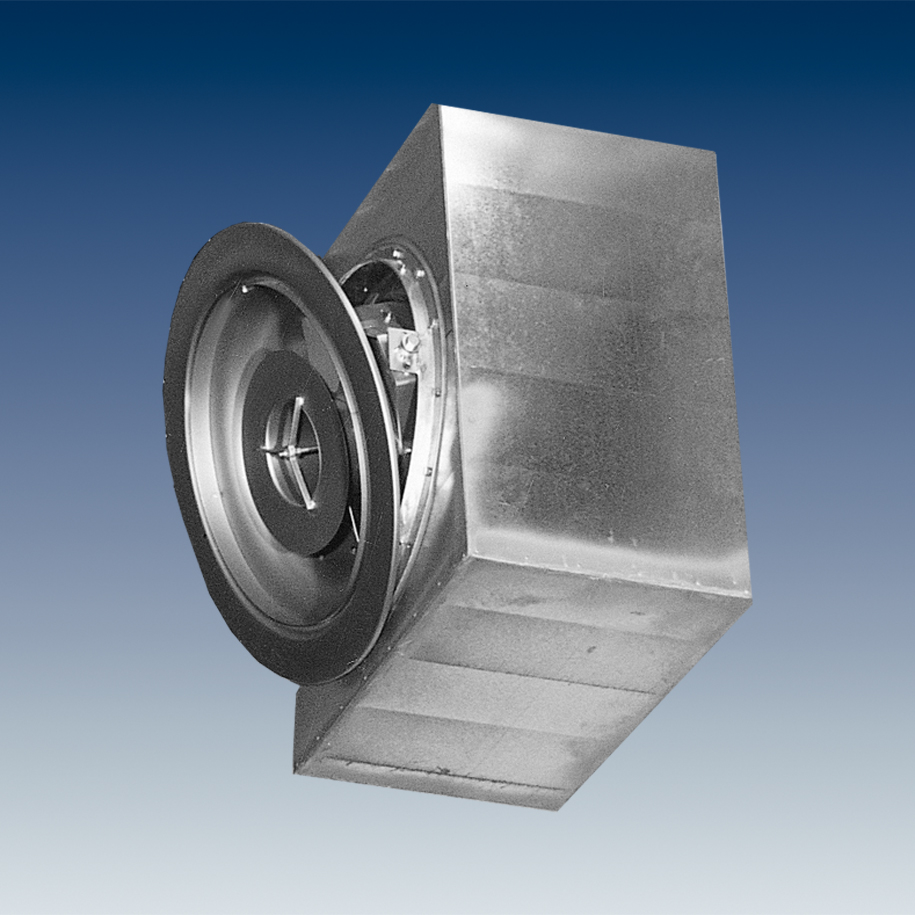

Productfoto’s


Referenties

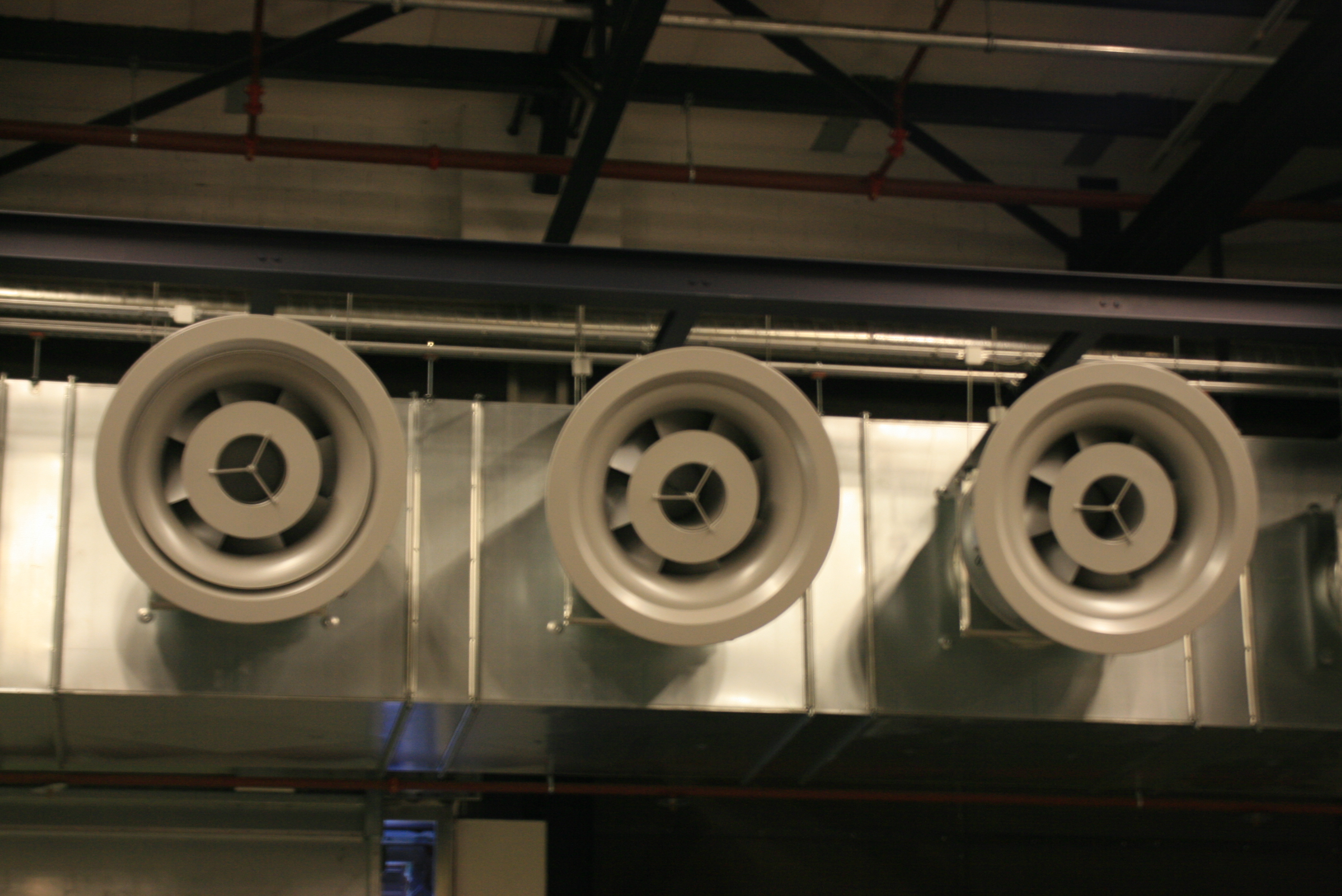

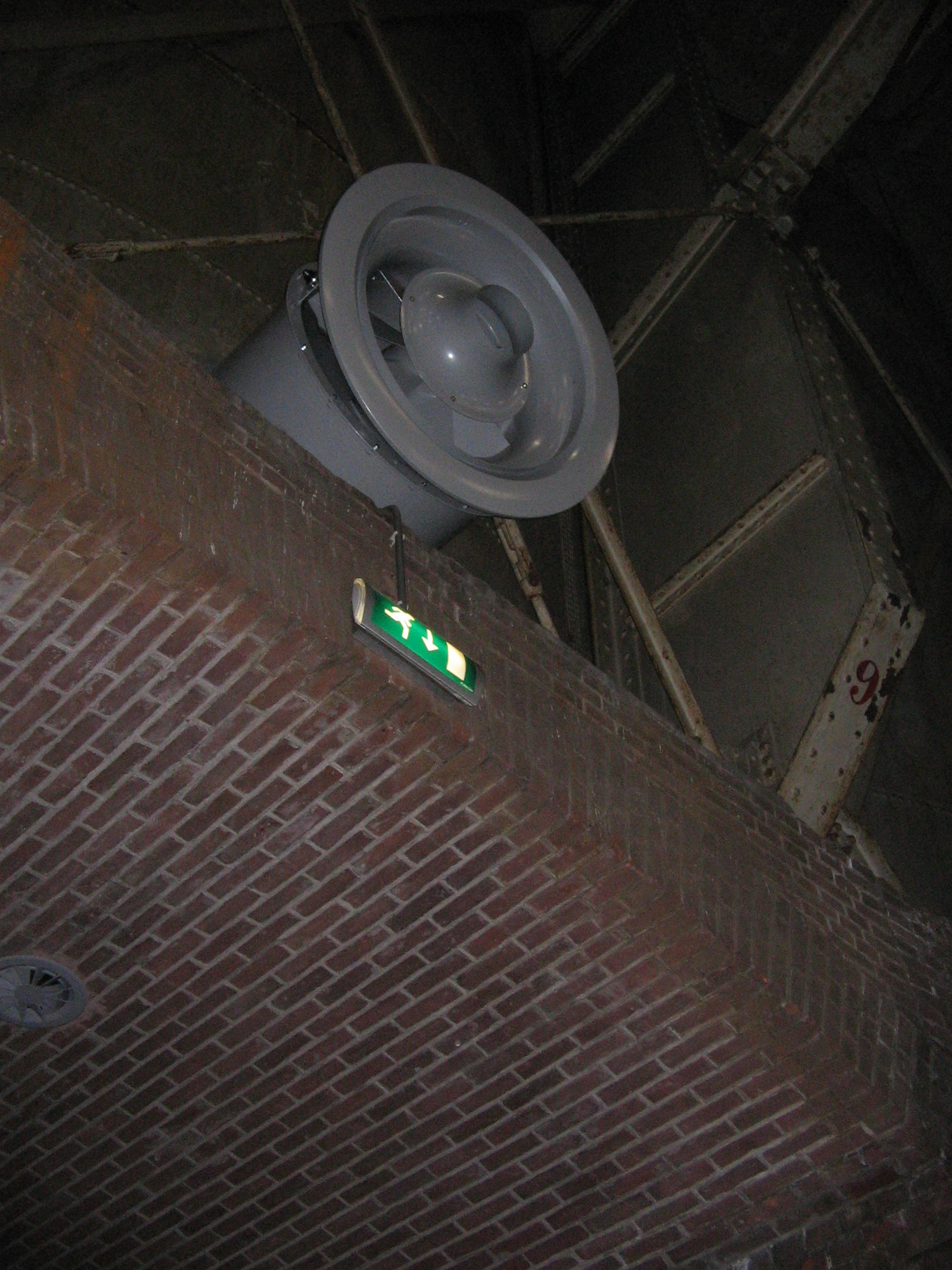

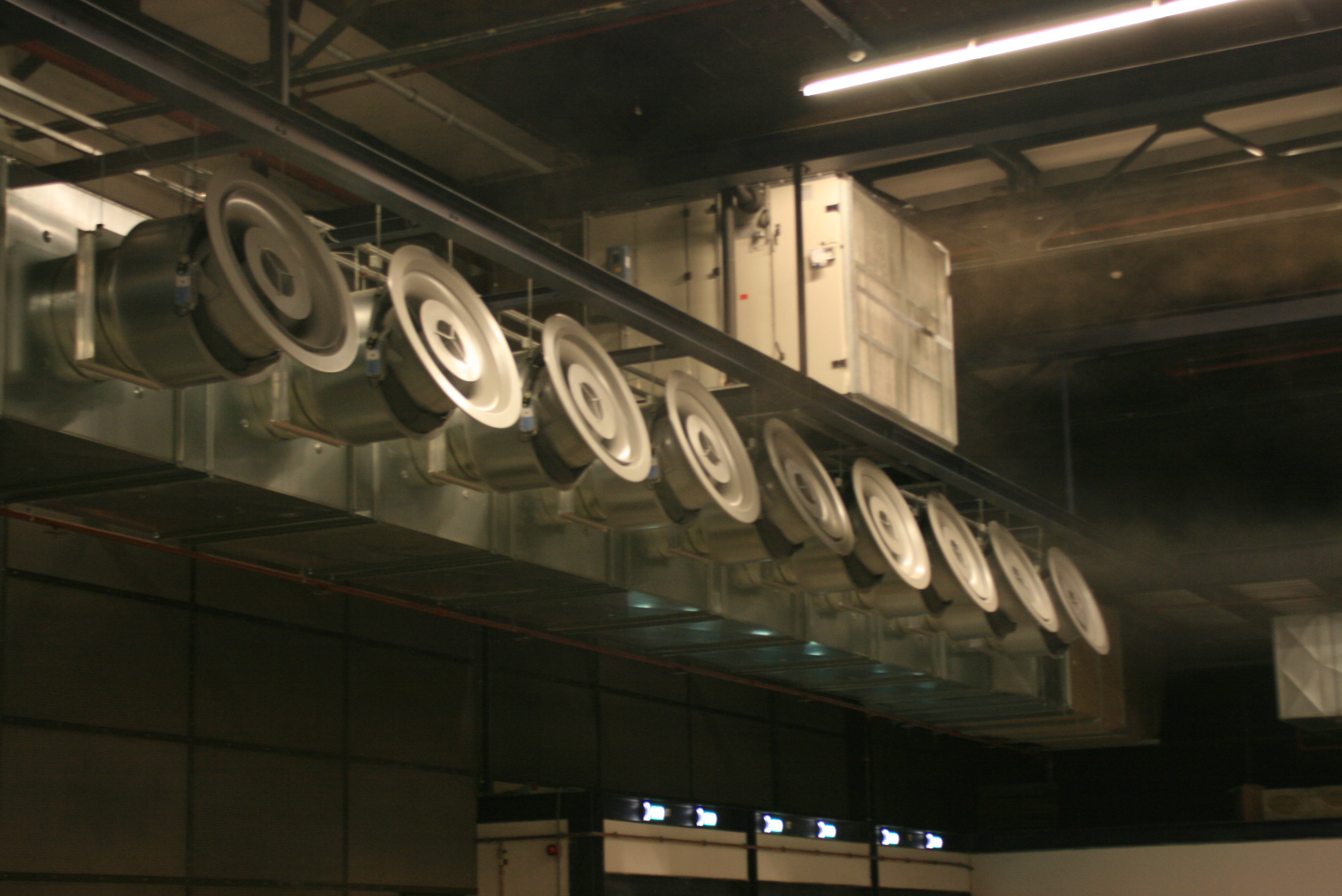

Klokgebouw/Eindhoven en Westergasfabriek/Amsterdam
