Klimaatplafonds SKS-4/3-duo, for vrijhangende en verdekte installatie

Specificaties

  • Klimaatplafonds SKS-4/3-duo, for vrijhangende en verdekte installatie

    High-capacity elements for installation above open, suspended ceilings; suitable for cooling rooms of different types and uses, but also usable for heating.​

    • Nominal length: ​1 000 mm – 4 000 mm
    • ​Nominal width: 400 mm – 1 200 mm
    • ​Nominal height: ​120 mm
    • ​Pipe spacing: ​100 mm
    • ​Connection type: ​push-in fitting, press-fitted connection
    • ​Installation height: ≥ 200 mm​
    • ​Surface finish:: ​powder coating to RAL (standard RAL 9005)

  • Categorie

    - Koel- en verwarmingssystemen

Omschrijving

  • Standard cooling capacity 216 W/m² of cooling element without suspended ceiling (with reference to DIN 4715), with high heat removal by convection and radiation
  • Suitable for high cooling capacities, as required in offices with high heat loads, television studios, technical rooms, or in the industrial sector
  • Uses the retention capacity of the concrete ceiling
  • Design and installation of mechanical equipment and ceiling can largely occur separately
  • Combinable with any air distribution system
  • The basic element is copper serpentine pipework in one piece, thus long lifetime, assured quality, operating pressure up to 6 bars
  • No combustible components

Downloads

E2.1.1.2_SKS4-3-duo_Static cooling ceiling system

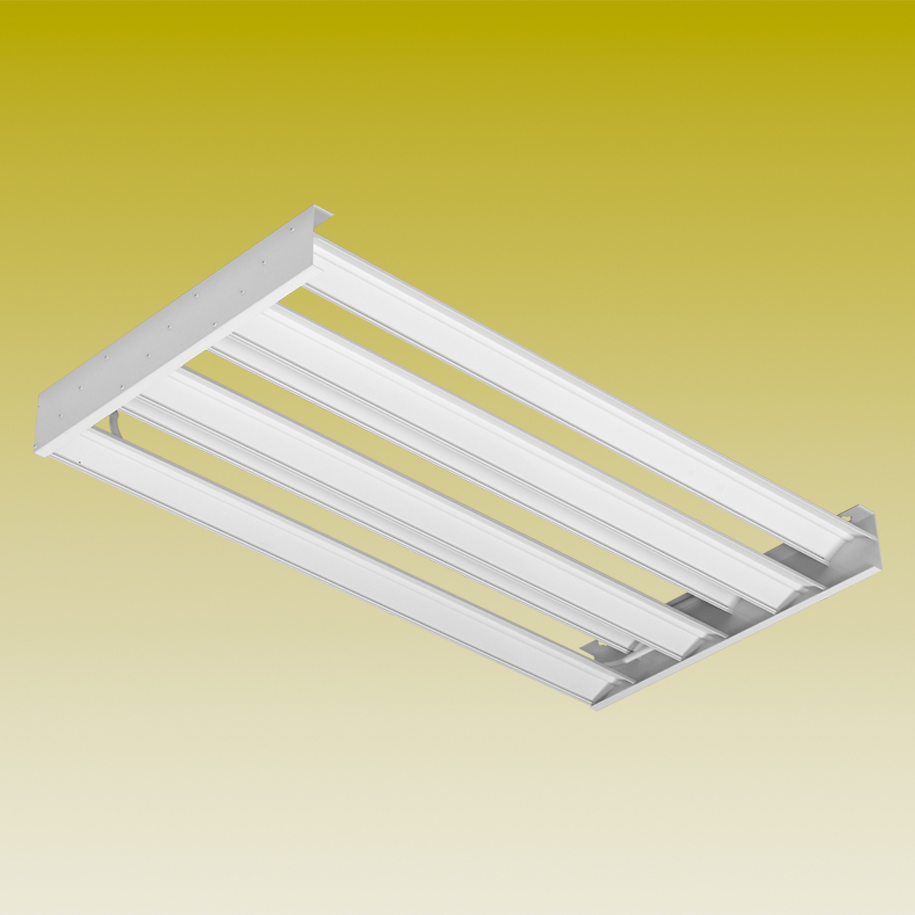

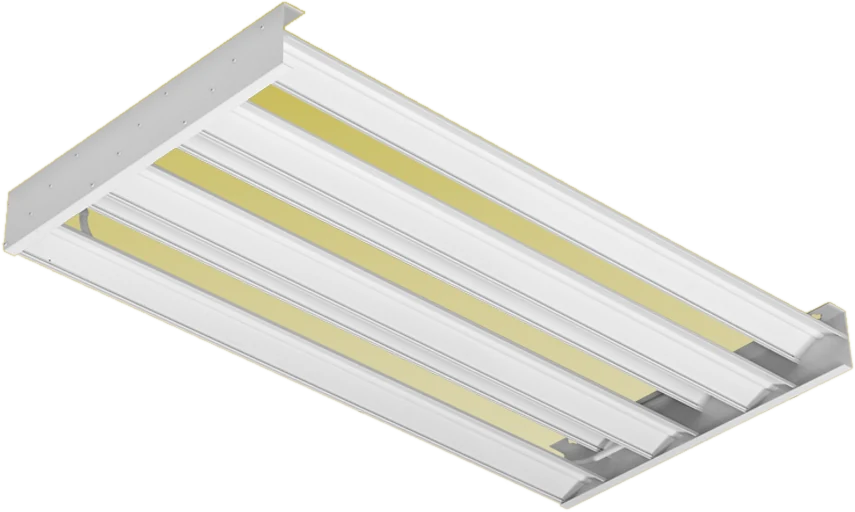

Productfoto’s
