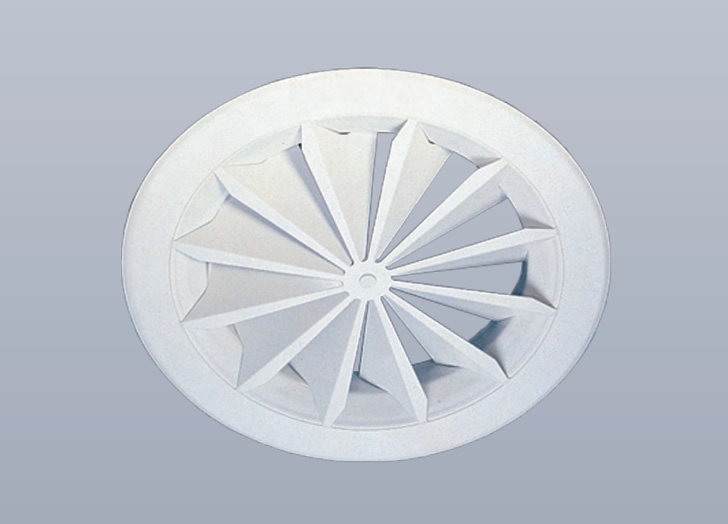

Radial outlet – RA-N

Product specification

  • Radial outlet – RA-N

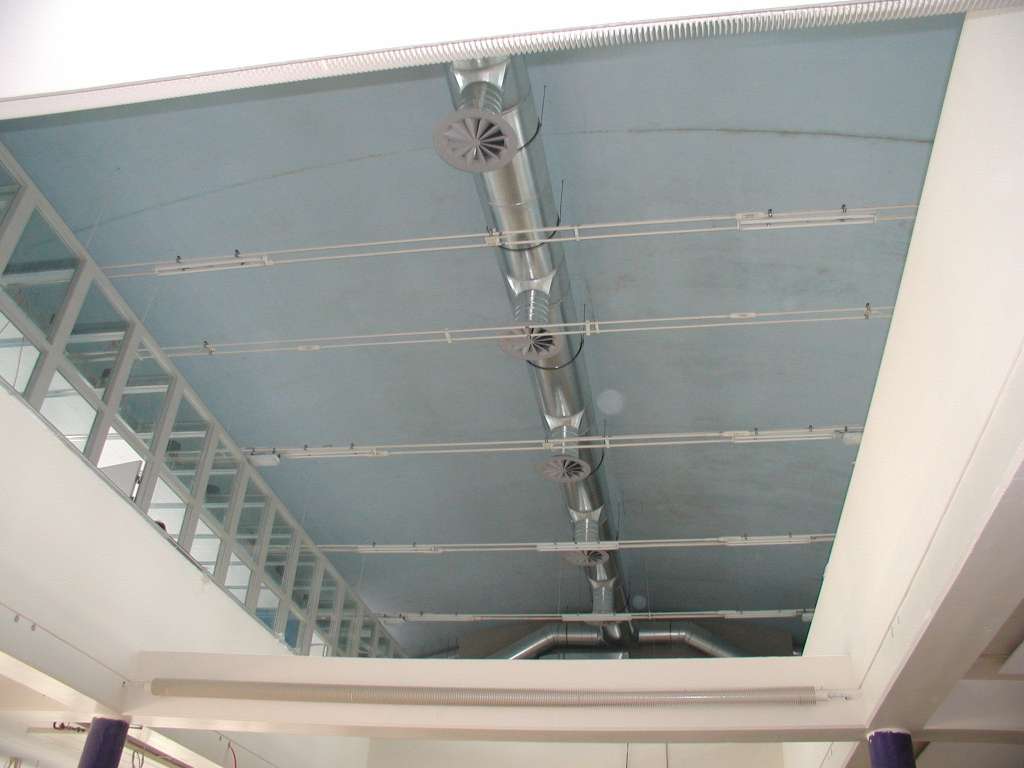

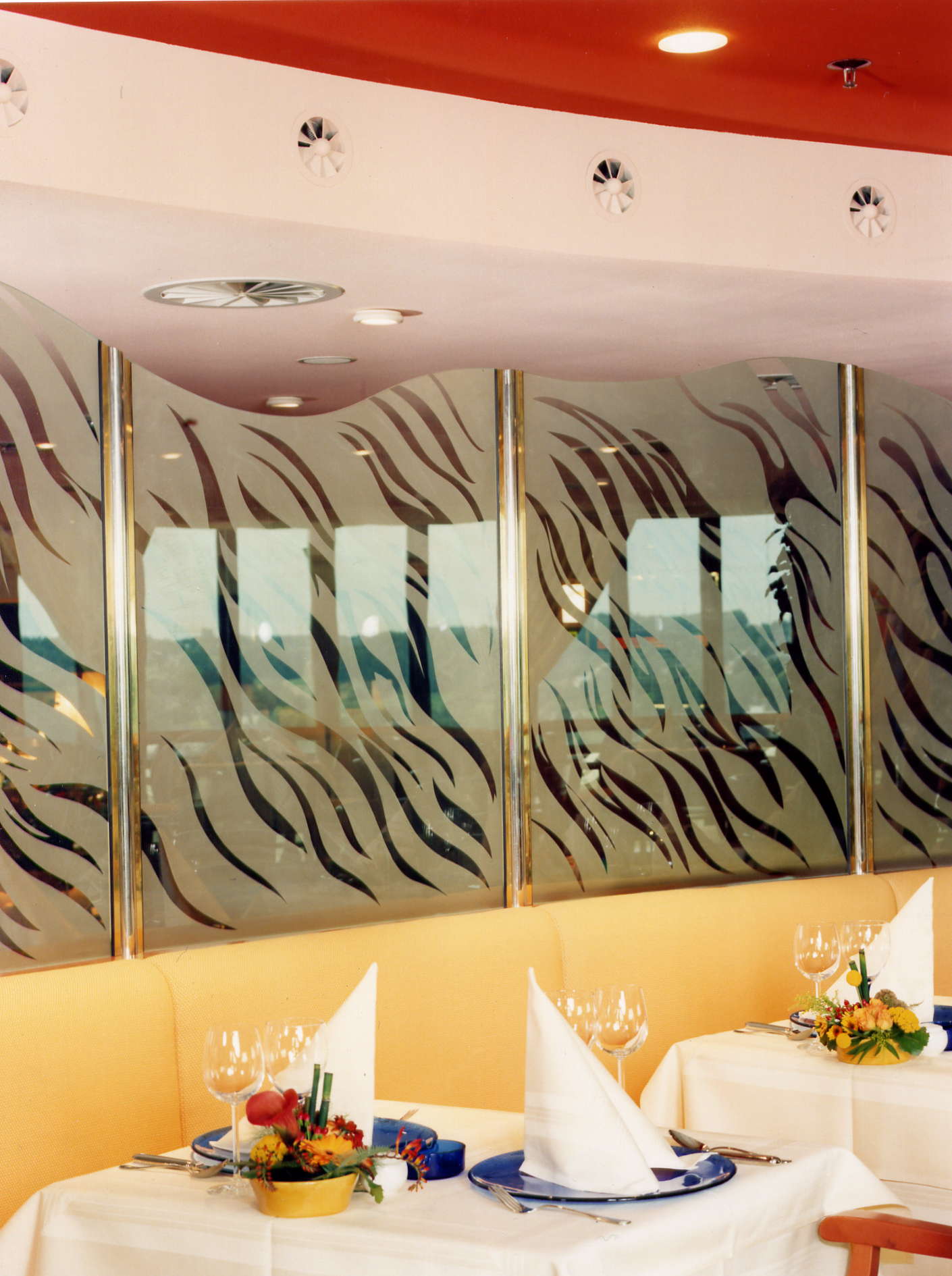

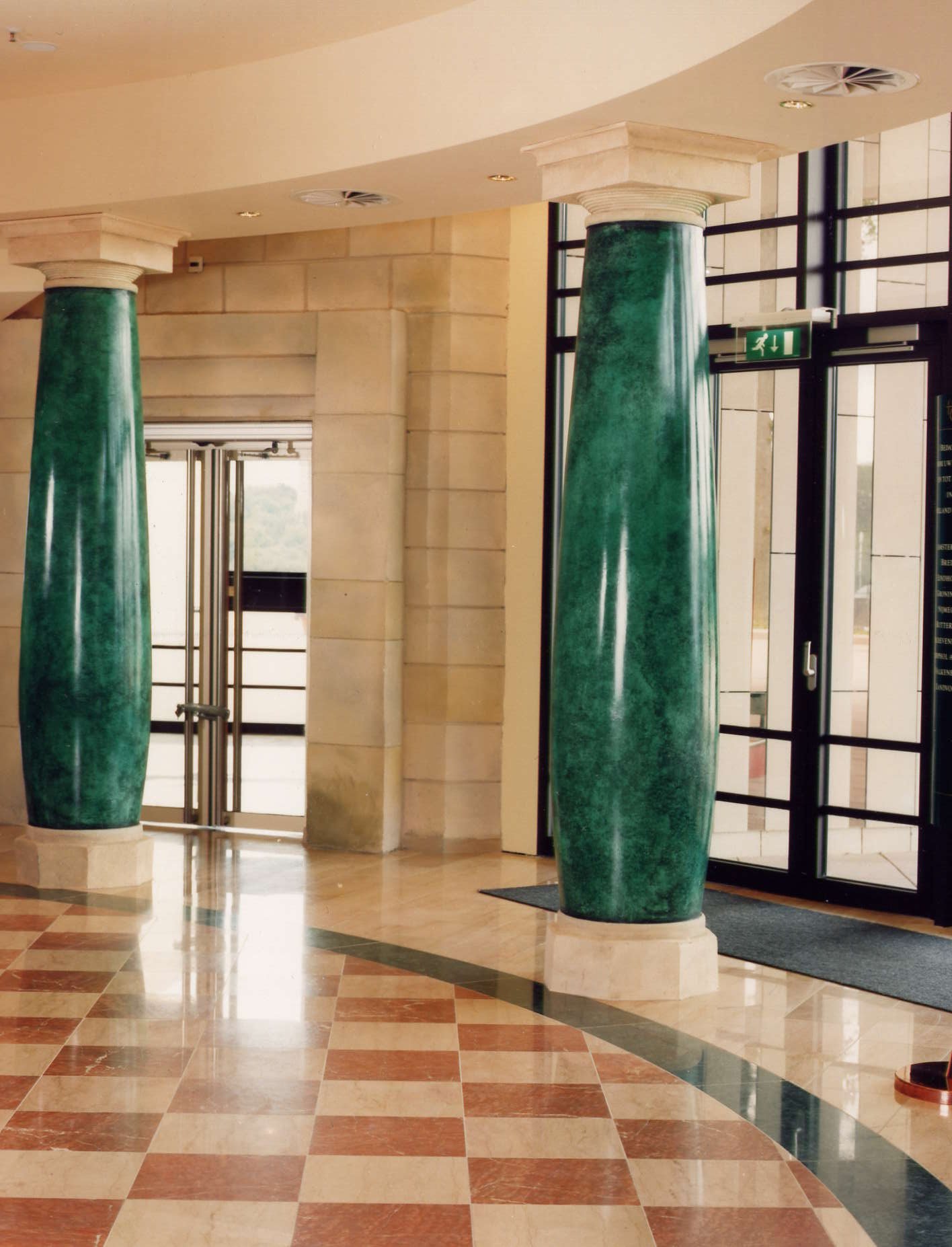

    For installation flush with ceiling or freely suspended.
    • Volume flow rate range: 11 – 555 l/s [40 – 2 000 m³/h]
    • ​Nominal sizes: DN 100 – DN 500
    • ​Discharge height: 2.5 – 4.5 m

  • Category

    Air outlets - Ceiling

Description

  • Radial, horizontal jet dispersion
  • Connection to flexible or spiral seam duct via reducer or connection box
  • Convenient screw fastening from below
  • Perforated cover screen available on request
  • Also available as return air inlet

Downloads

E1.1.3.1_RA-N_Radial outlet
