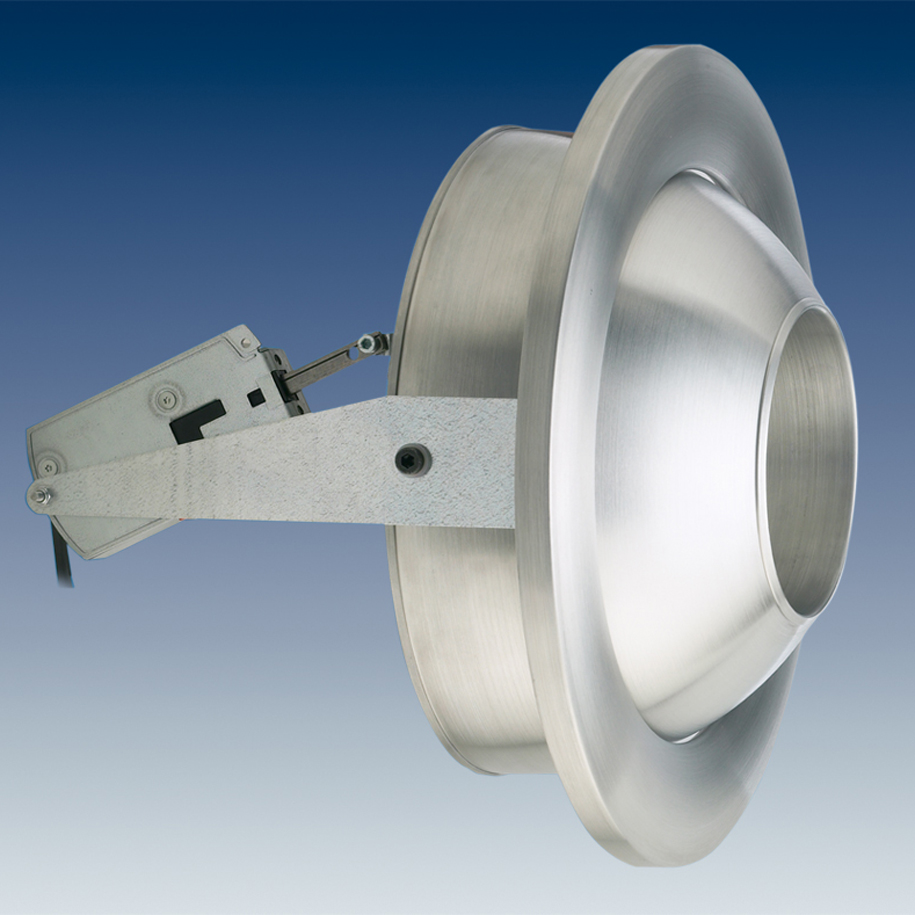

Adjustable nozzle – DW-V2

Product specification

  • Adjustable nozzle – DW-V2

    ​For installation on walls, pillars or galleries, where adjustment of discharge direction with servomotor or by hand is required.
    • Volume flow rate range: ​11 – 589 l/s [40 – 2 120 m³/h]
    • ​Nominal sizes: DN 60 to DN 250
    • ​Throw: ​3 – 50 m

  • Video

    Play Video

  • Category

    Air outlets - Wall

Description

  • Circular free jet
  • Discharge direction adjustable through ± 30° around the swivel axis manually or with servomotor
  • Position of swivel axis also adjustable in the vertical plane, enabling to alter the discharge direction sideways
  • Low sound power level
  • Low pressure loss
  • Direct connection to supply air duct or pressurized chamber, or connection with push-in end for spiral-seam duct and with slip-on end for shaped parts

Downloads

E1.2.3.1_DW-V2_Swivel jet nozzle



D1.2.3.1_DW-V2_Schwenkbare Weitwurfduese

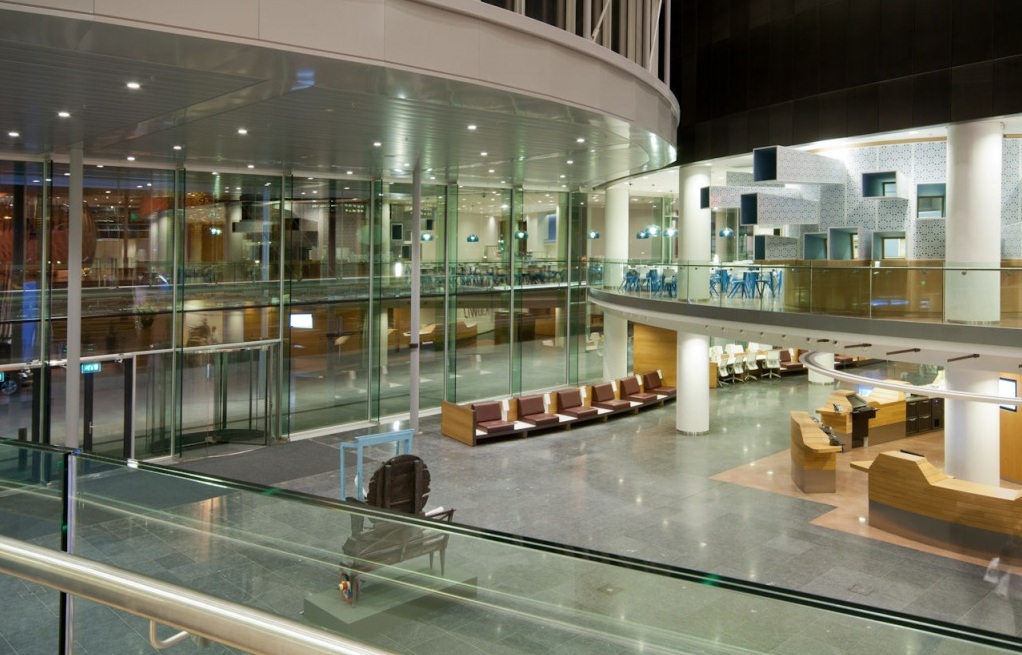

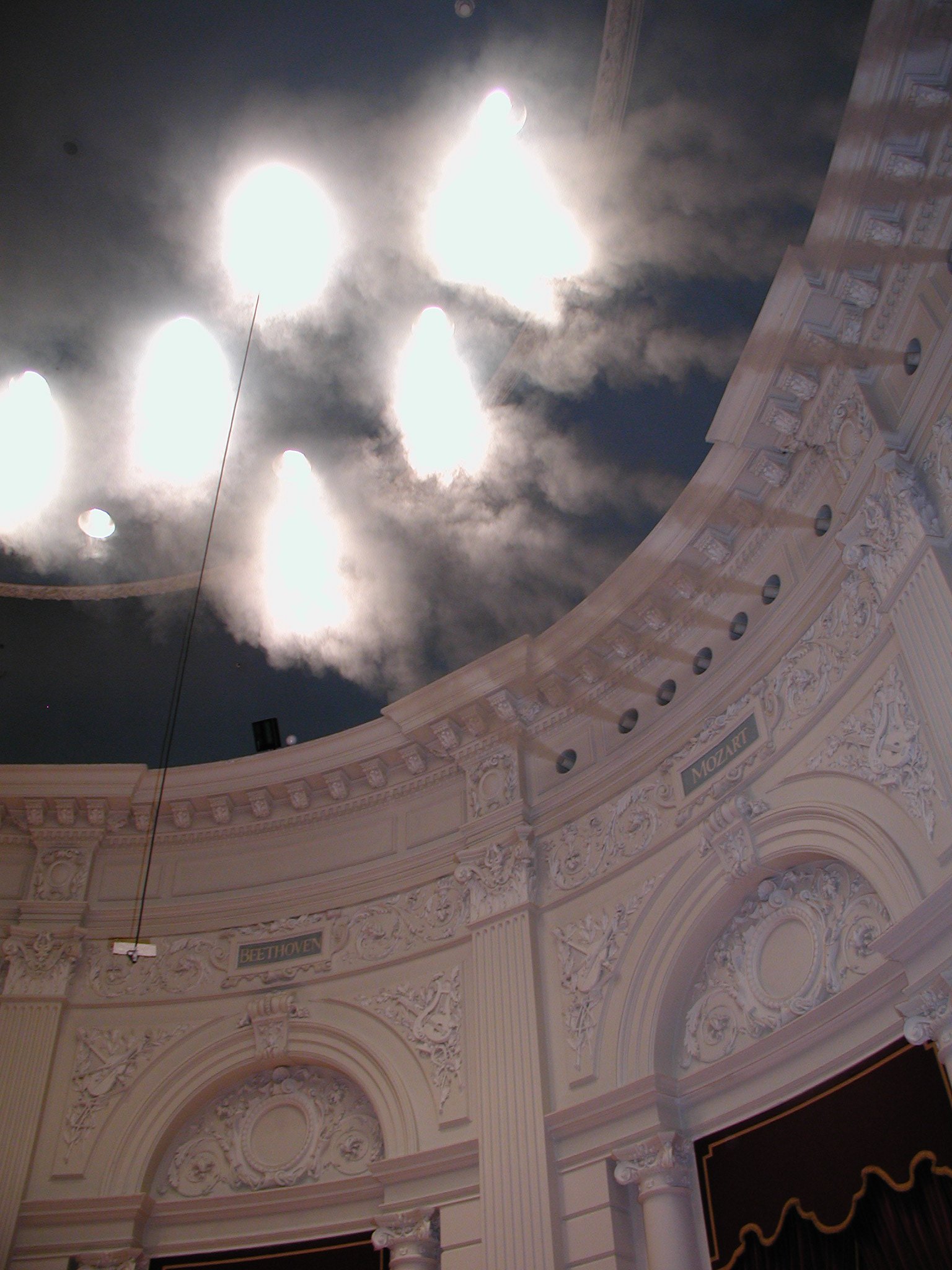

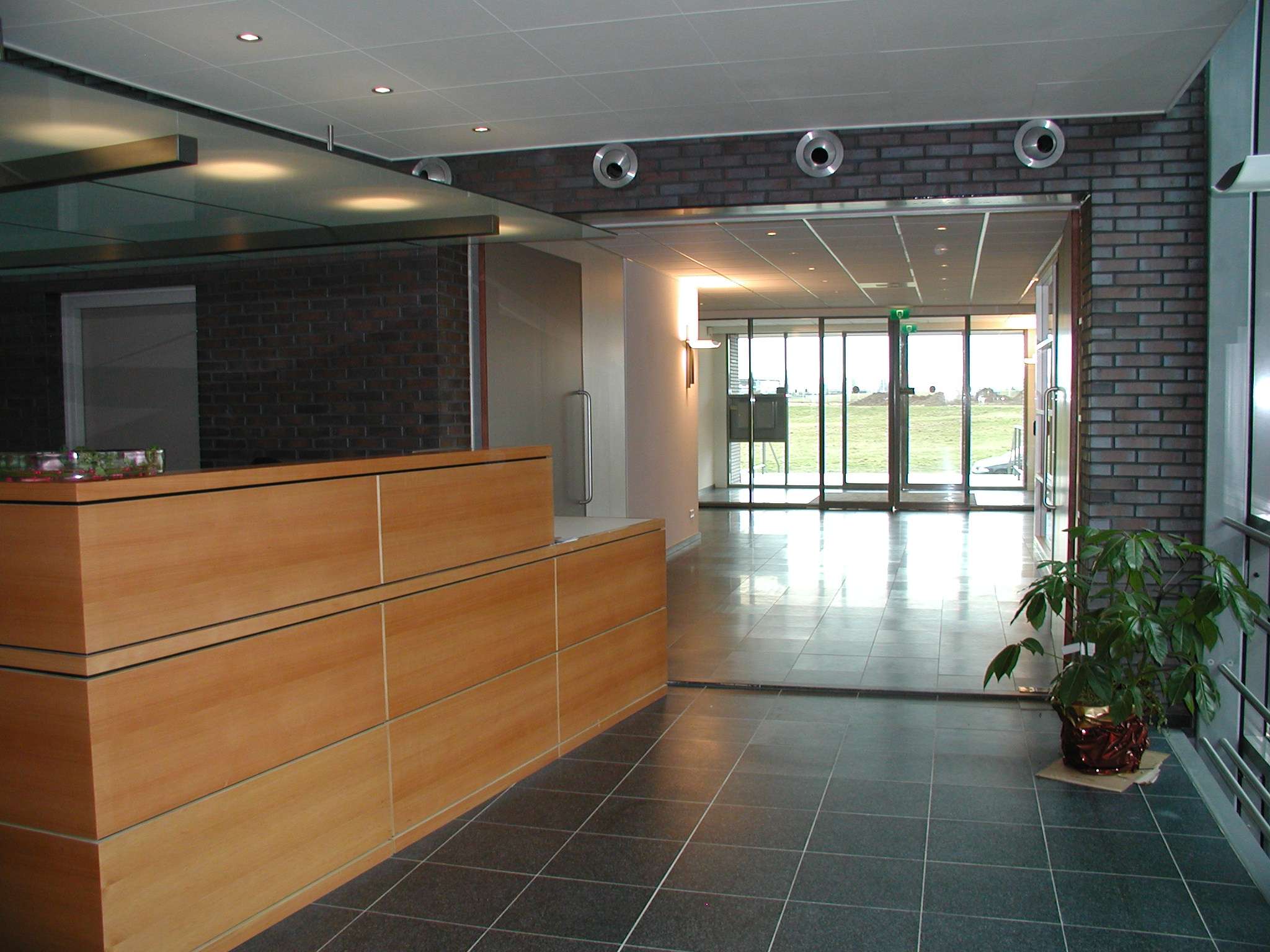

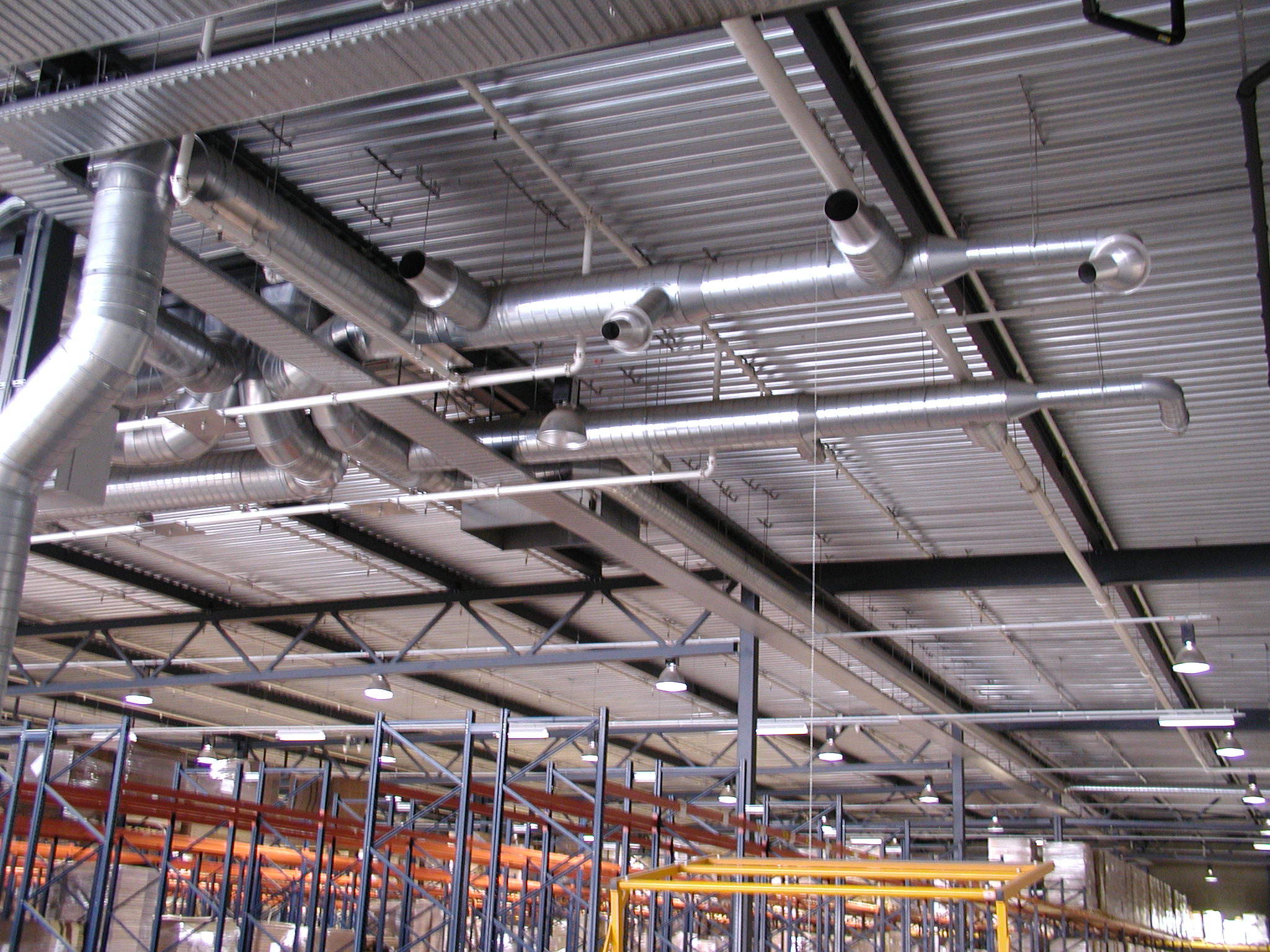

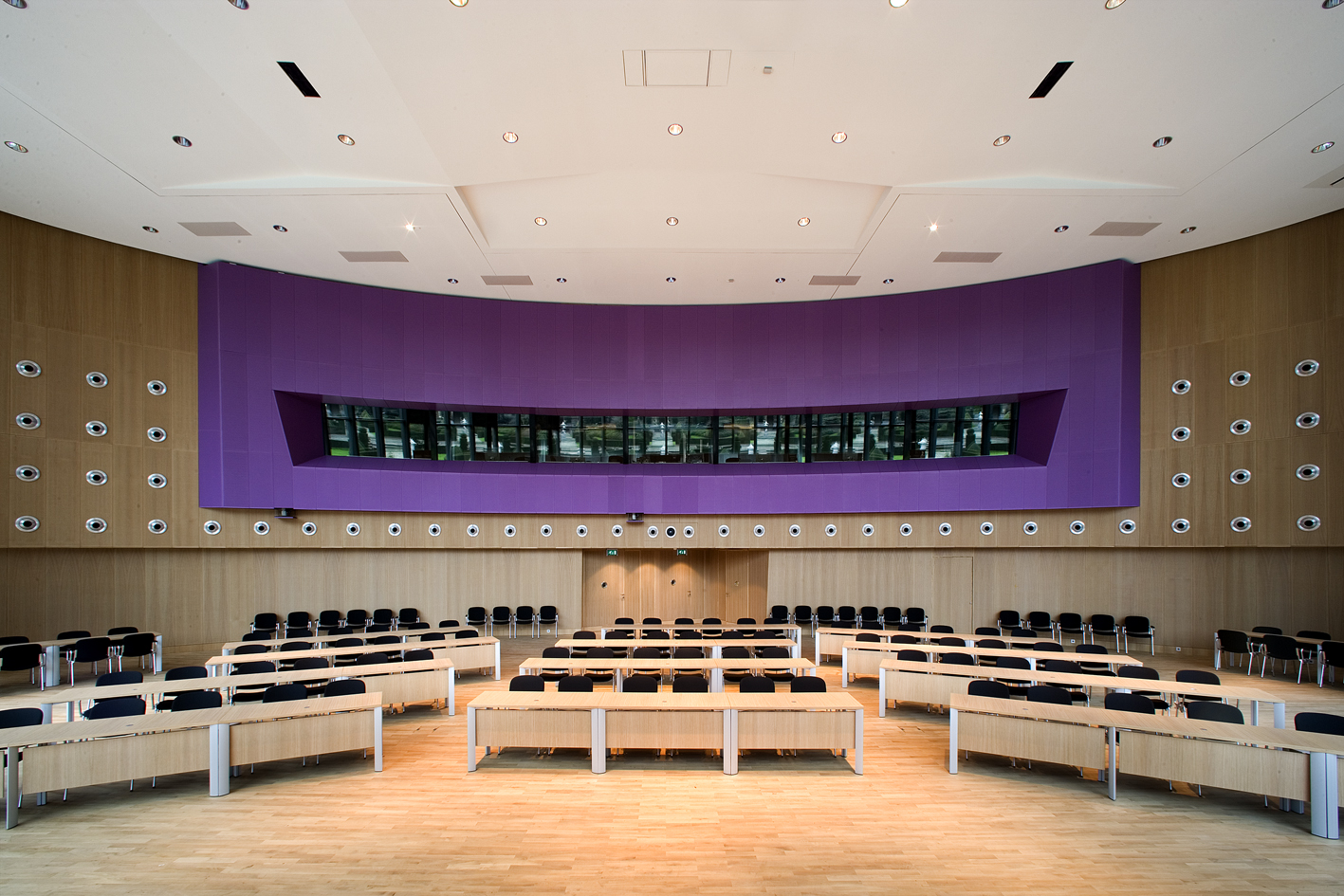

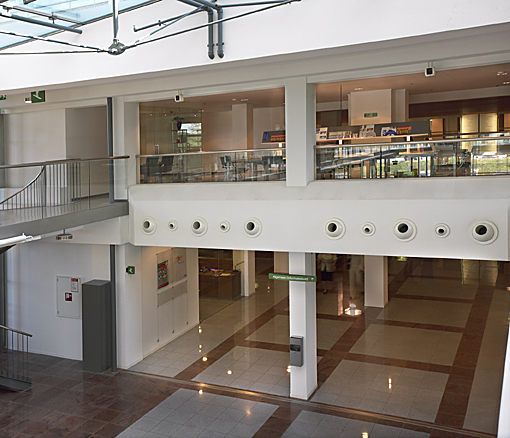

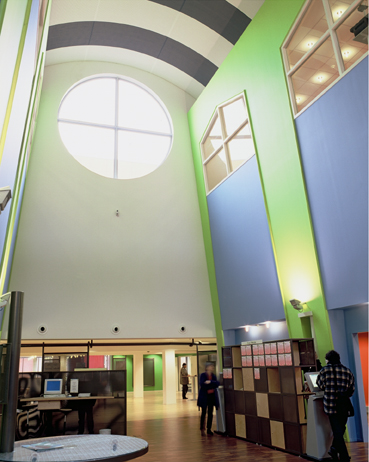

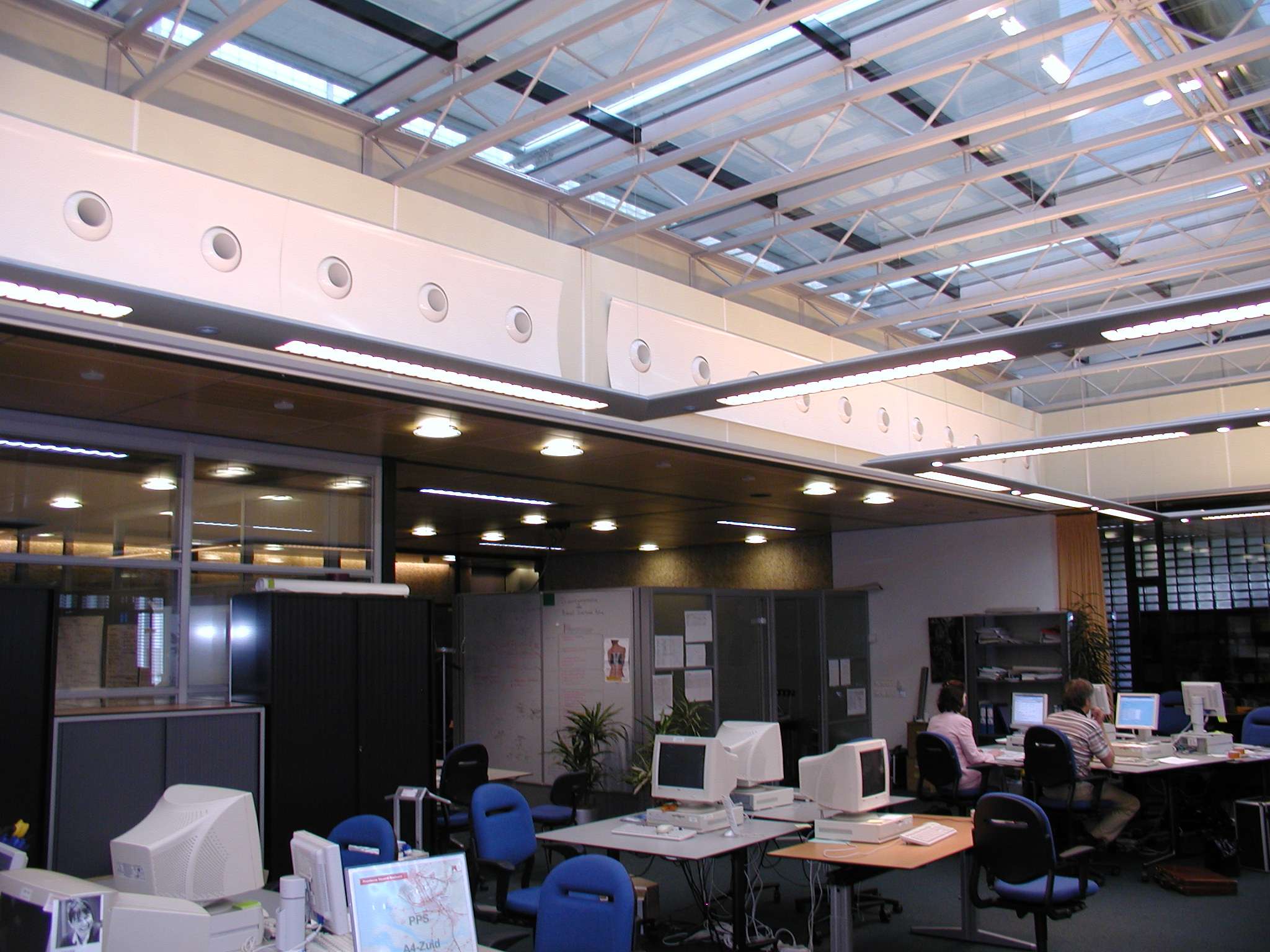

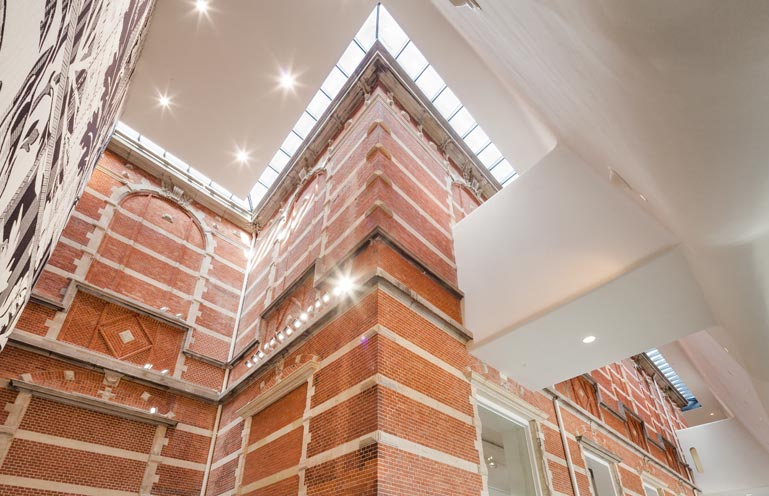

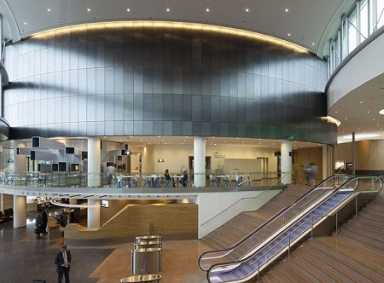

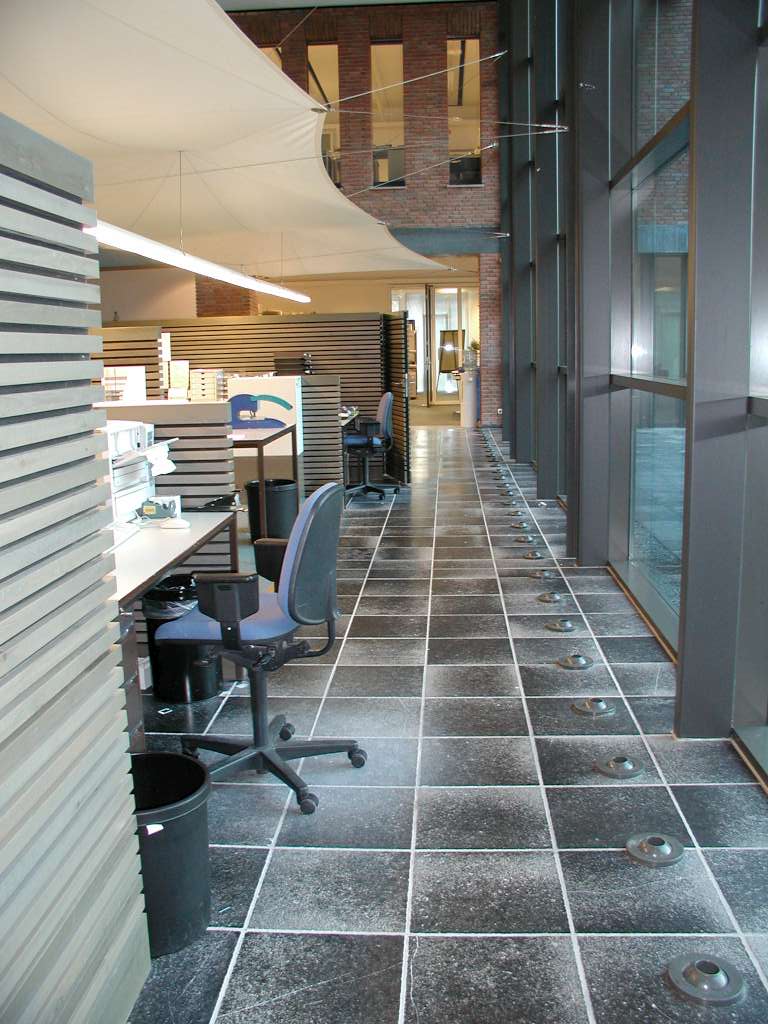

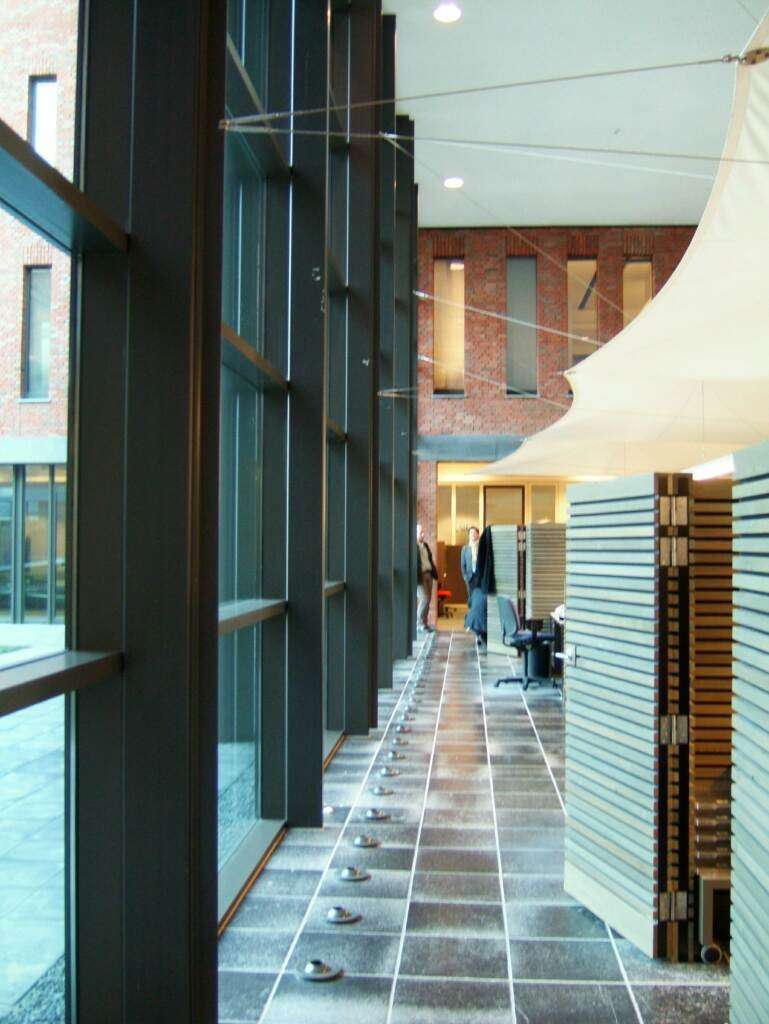

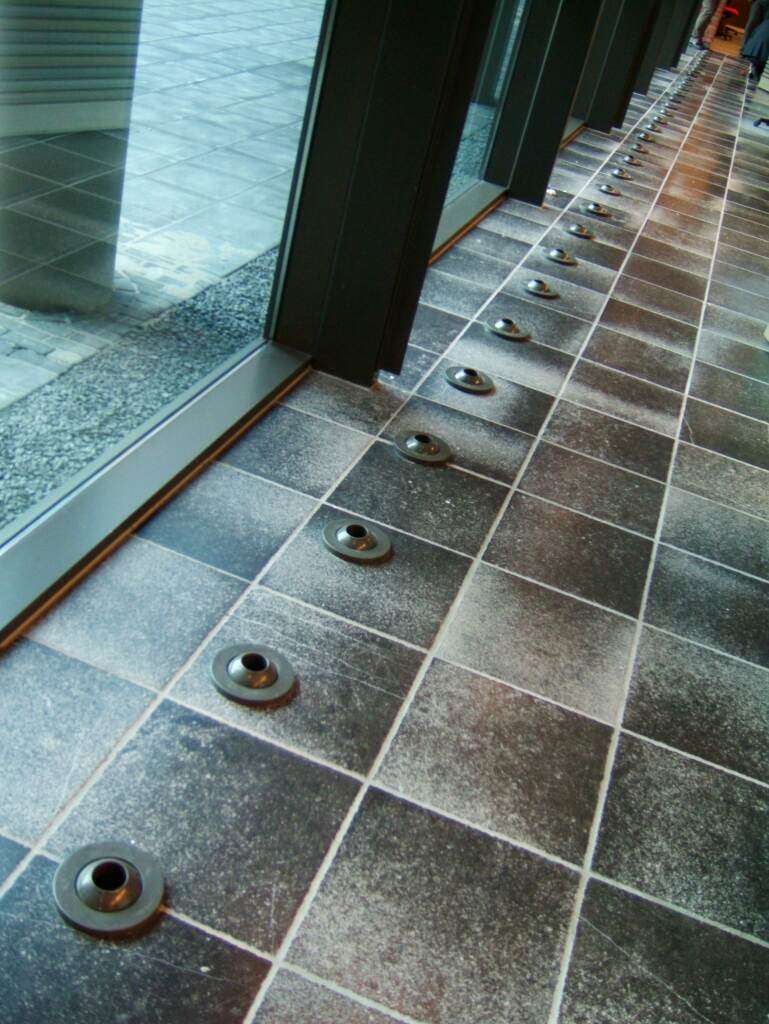

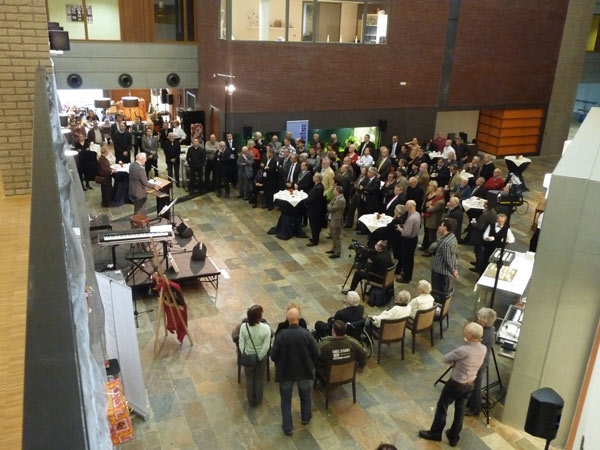

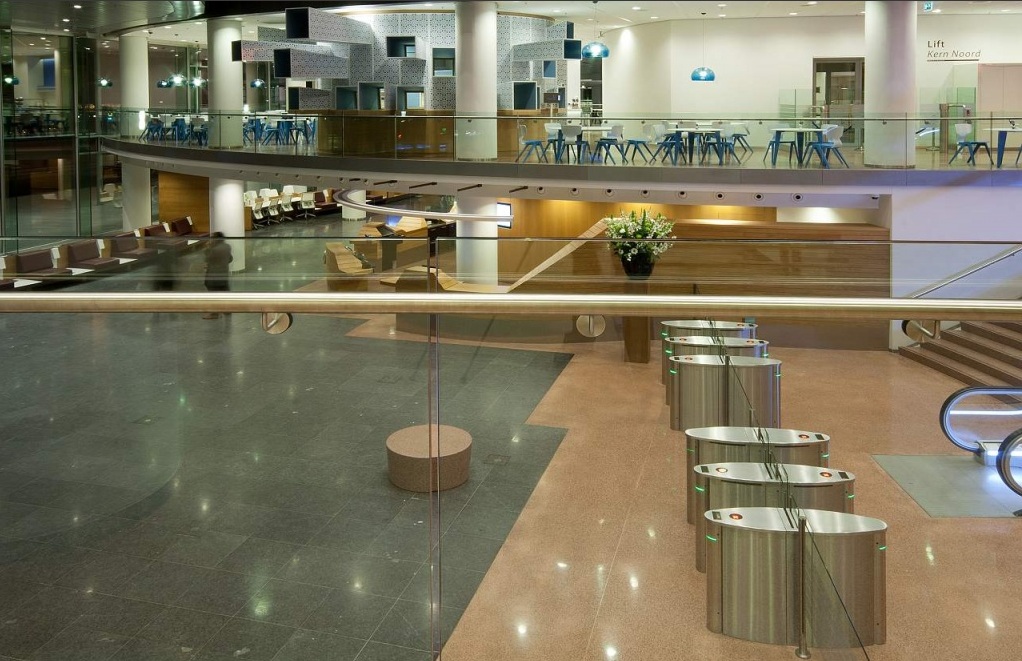

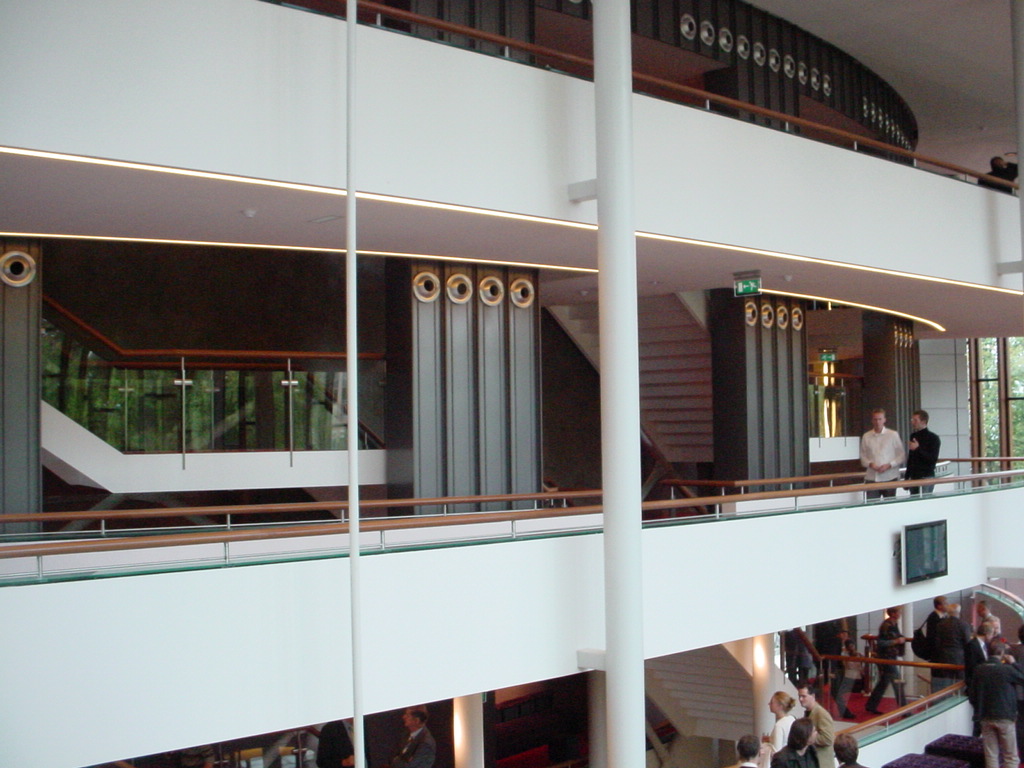

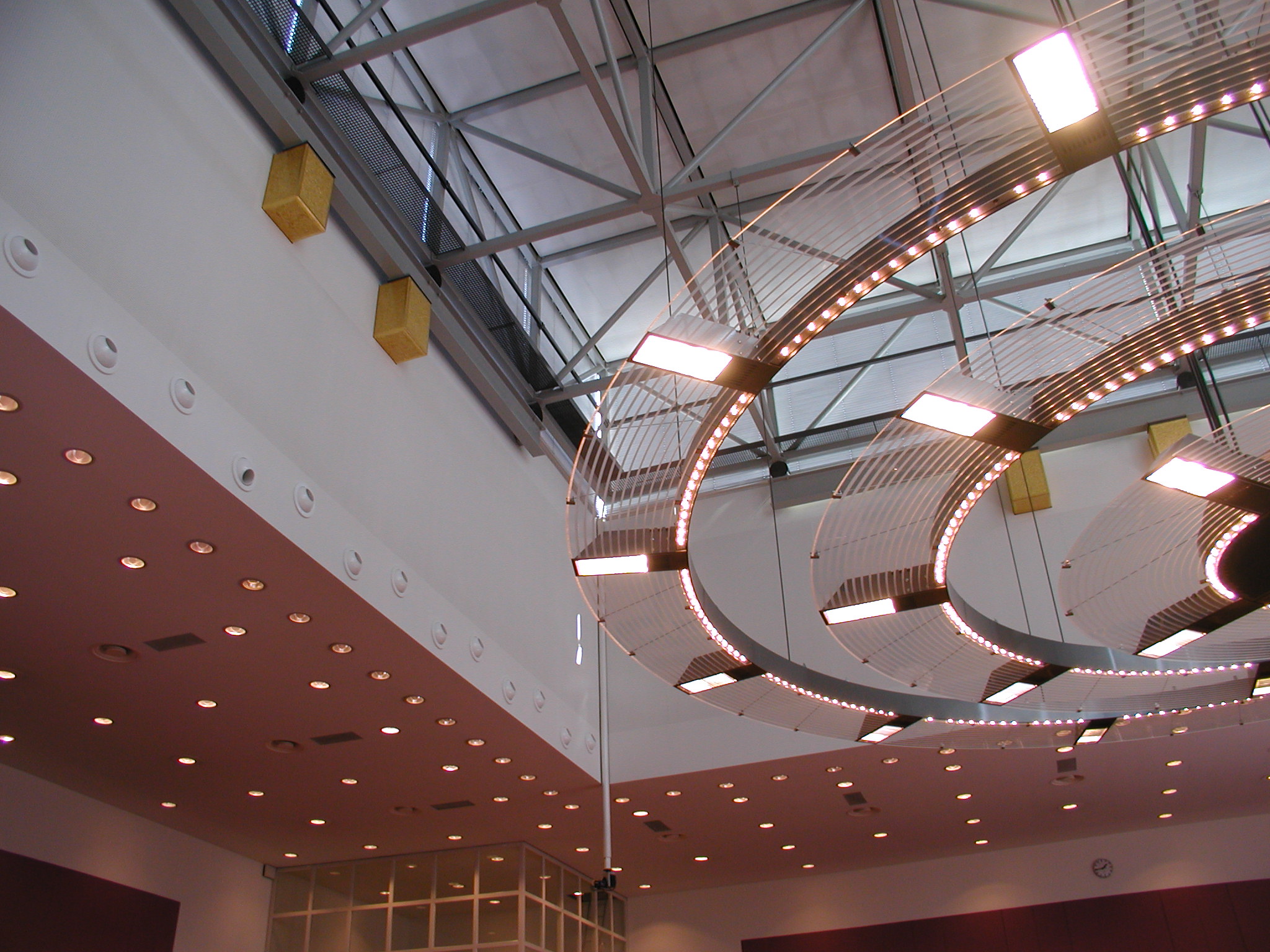

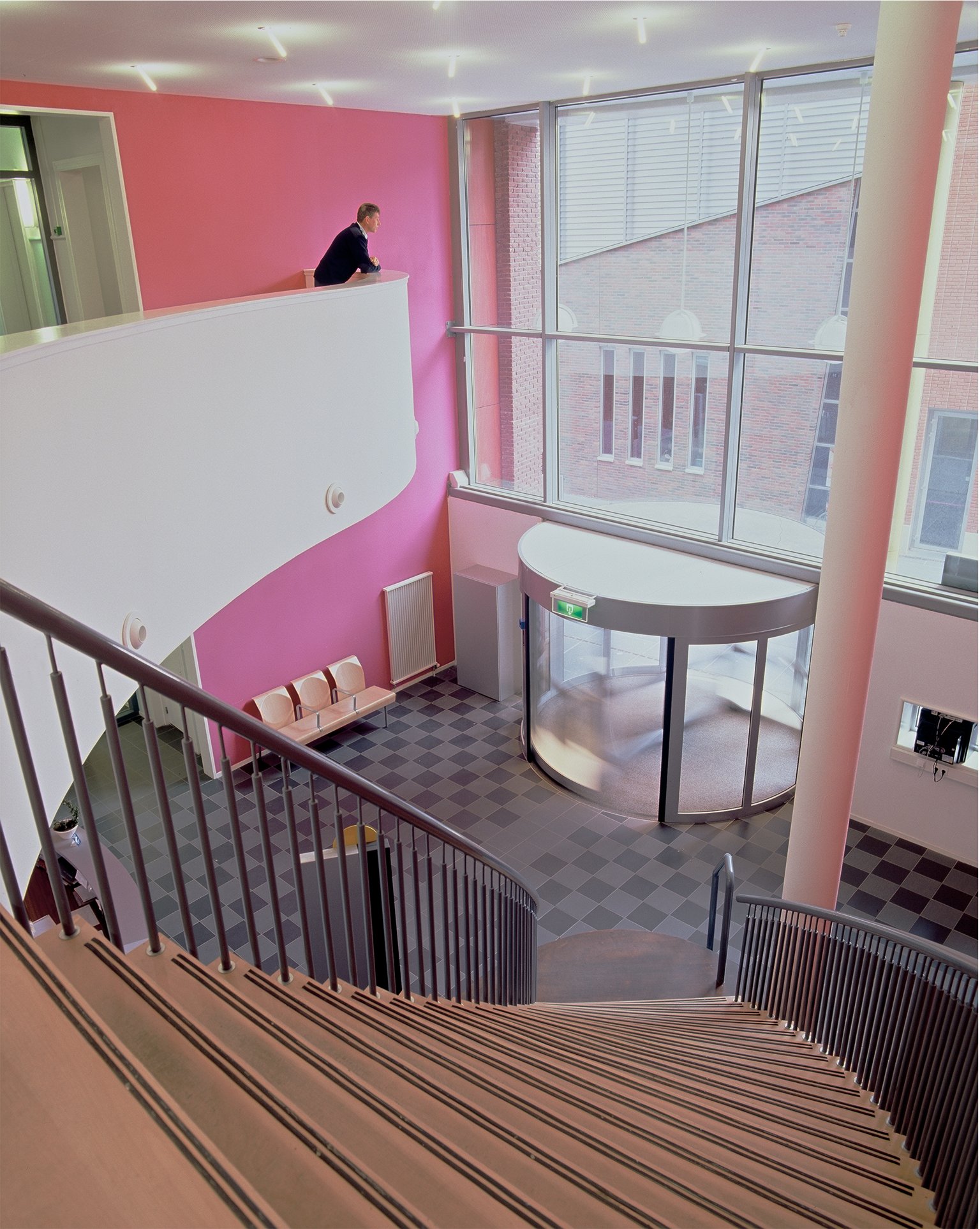

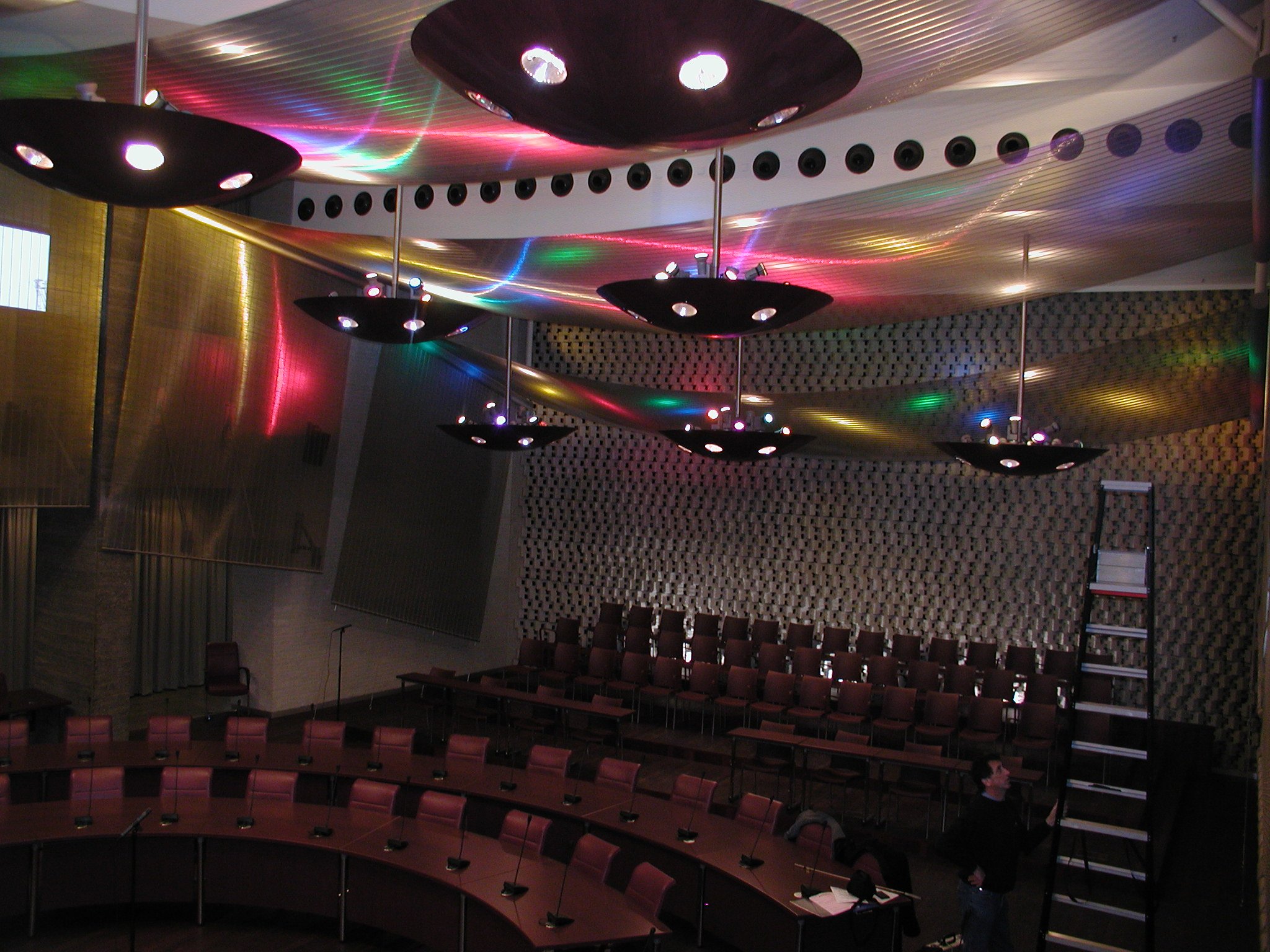

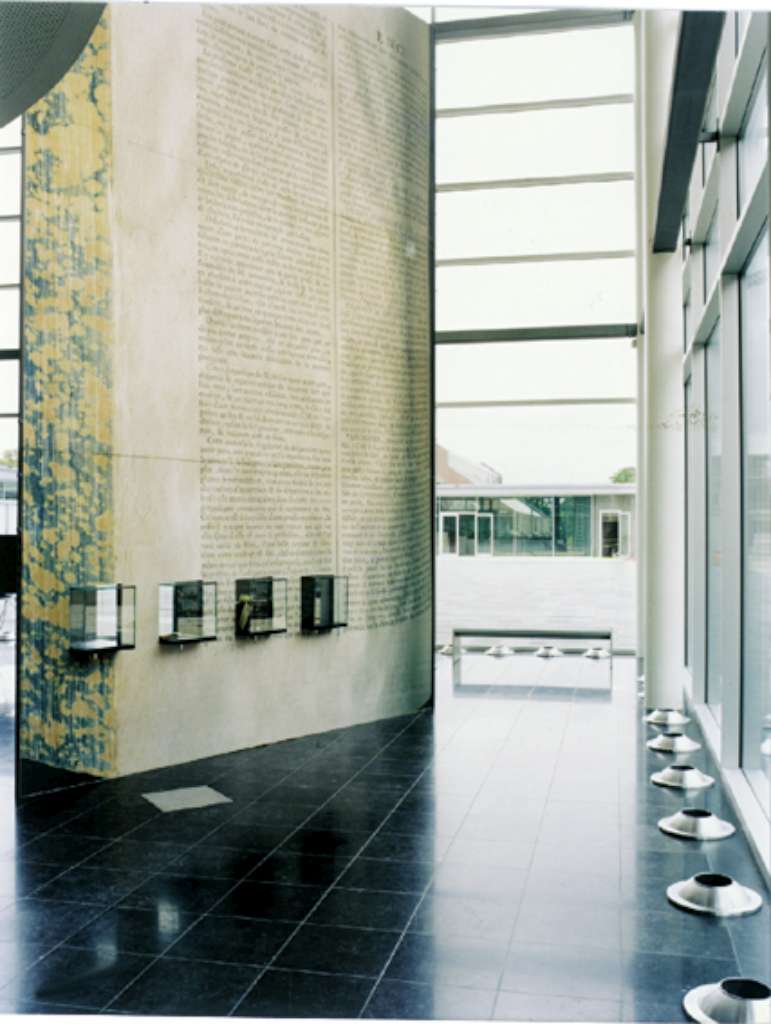

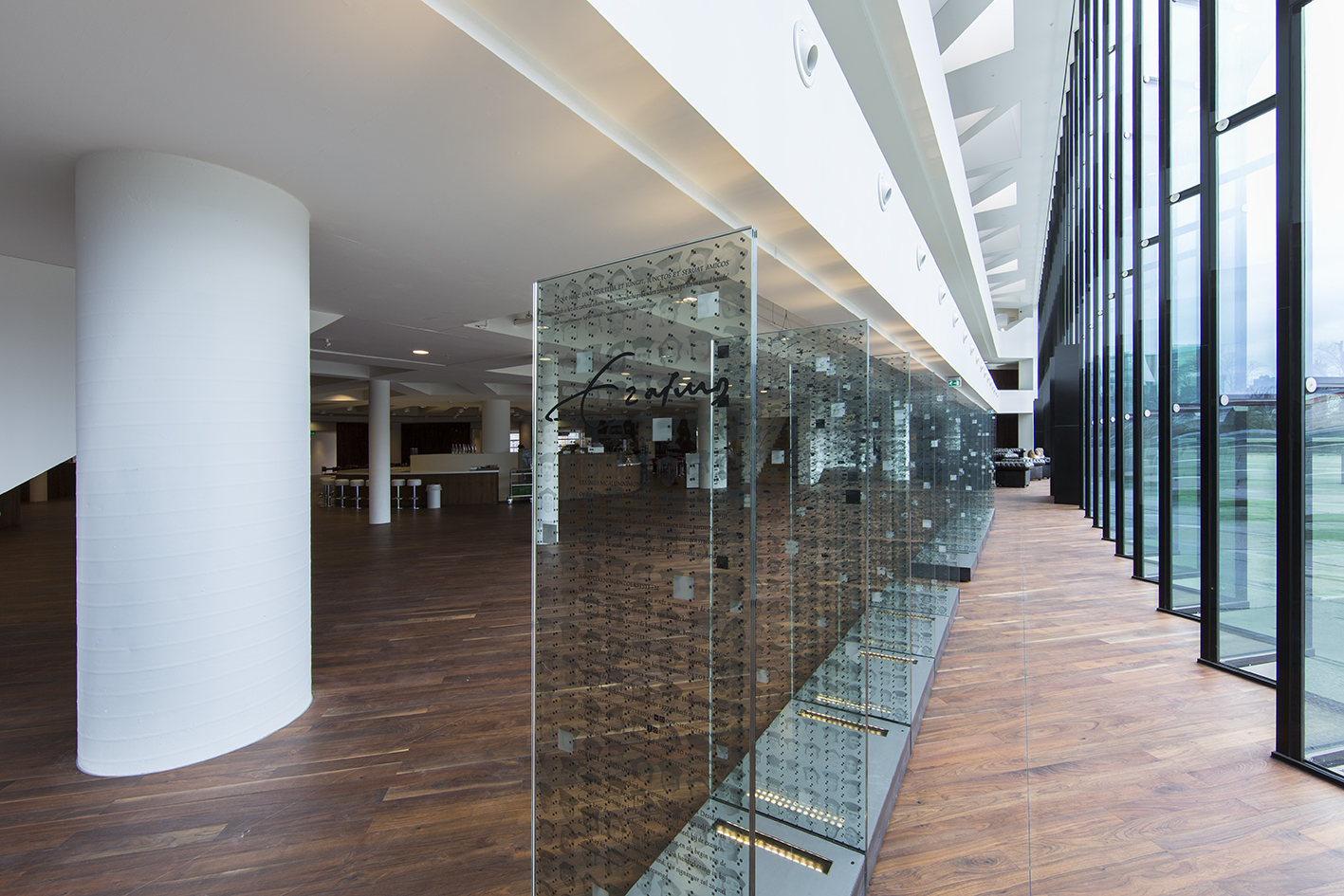

Productfoto’s
