Induction unit for mixing ventilation IG-M-SB, for vertical parapet mounting

Product specification

  • Induction unit for mixing ventilation IG-M-SB, for vertical parapet mounting

    ​Induction unit for mixing ventilation, for vertical parapet mounting Type IG-M-SB​
    • Primary air volume flow rate: 8 – 36 l/s [30 – 130 m³/h]
    • ​Cooling capacity (total): max. 1100 W
    • ​Heating capacity: ​max. 960 W
    • ​Heating capacity, self-convection: ​245 W
    • Nominal unit width: ​800, 1000 and 1200 mm
    • ​Depth: ​160 mm
    • ​Height: ​455 mm

  • Category

    - Facade- and floorsystems - Cool- and heatingsystems

Description

  • For cooling, heating, and fresh air supply along the facade, through window parapets; high level of thermal comfort
  • Primary air volume flow rate: 8 to 36 l/s [30 to 130 m3/h]
  • Low pressure loss (70 to 200 Pa), therefore energy-saving operation
  • Low sound power level
  • Heating also possible without primary air, which saves energy when heating at night and at weekends
  • Heat exchanger cleanable from the front and the rear (in compliance with requirements of VDI 6022).
  • The large fin spacing enables easy cleaning and obviates the need for a filter.
  • Suitable for new or refurbished buildings
  • Condensate tank below heat exchanger, inclusive of drain with ½“ connector

Downloads

E2.5.1.7_IG-M-SB_Induction_unit_for_mixing_ventilation-for_vertical_parapet_mounting

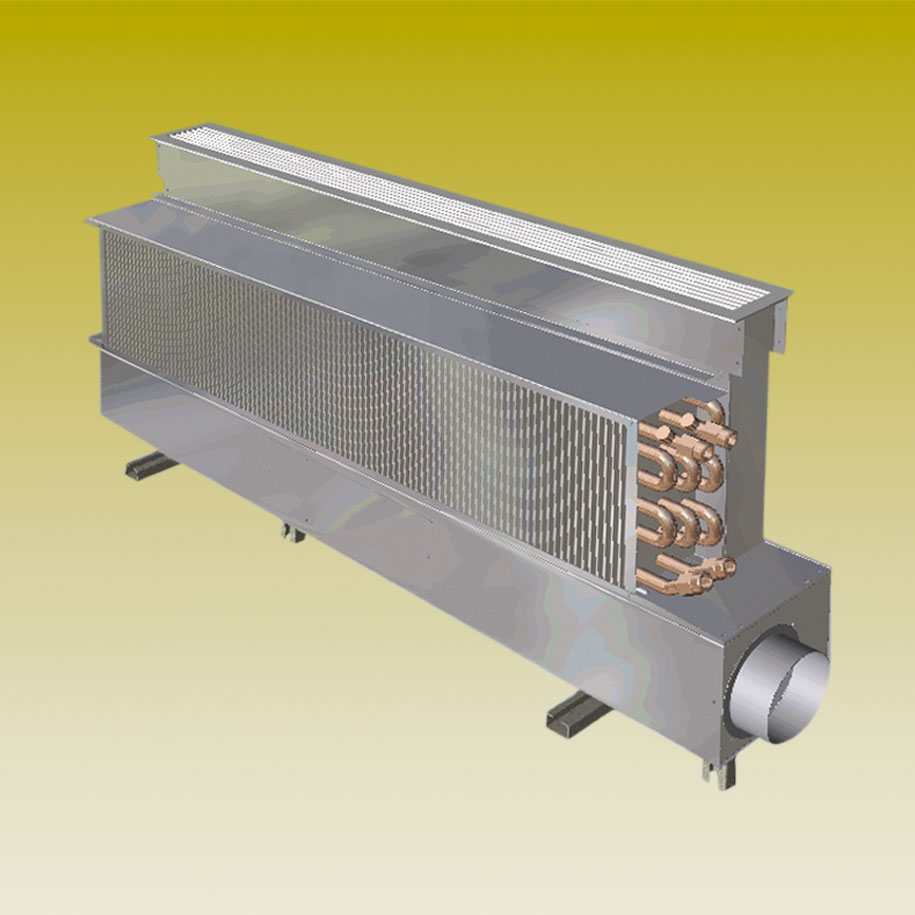

Productfoto’s
