Product specification
-

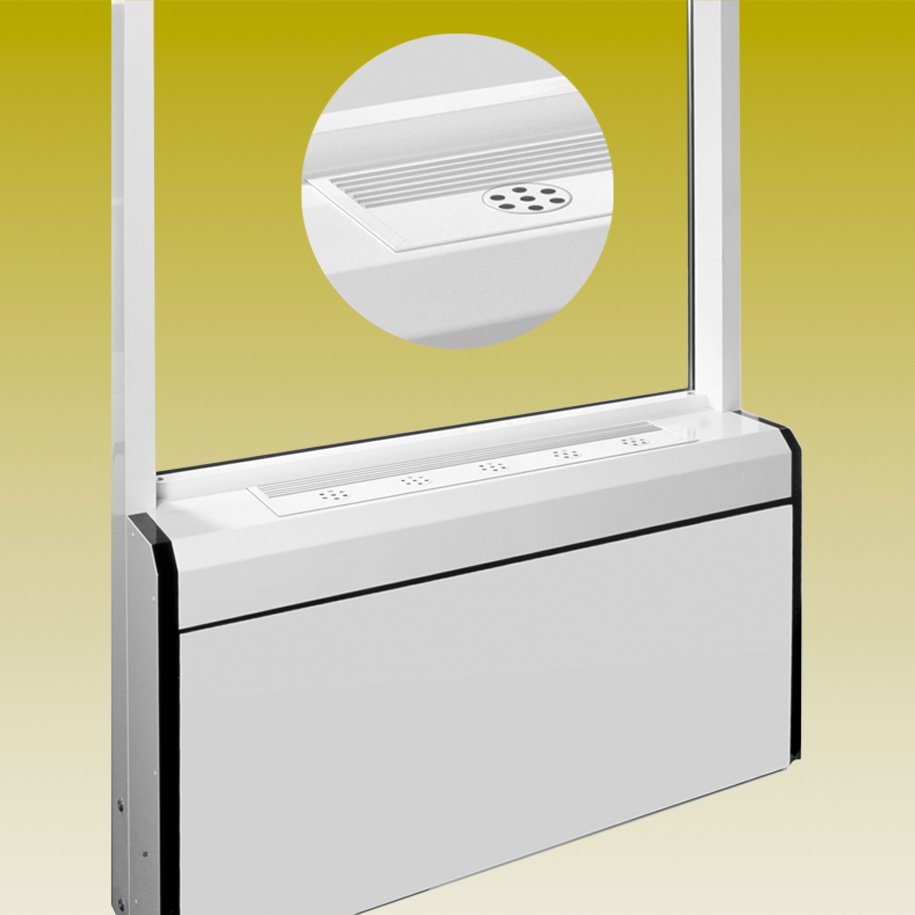

Induction unit for combijet mixing ventilation IG-K-SB, for vertical parapet mounting
Induction unit for improved indoor air flow thanks to separated fresh air supply to the workplaces and facade screening. Multiplex outlet with round jet bundle elements that are individually and manually rotatable through 360° to allow individual spread of the primary air jets directed to the workplaces.- Primary air volume flow rate: 14 – 22 l/s [50 – 80 m³/h]
- Total cooling capacity: max. 650 W
- Cold water temperature: 15 / 17°C
- Heating capacity: max. 1 100 W
- Hot water temperature: 50 / 40 °C
- Length:
- Width:
- Height:
- 990 mm
- 160 mm
- 450 mm
-
Video
-
Category
- Facade- and floorsystems - Cool- and heatingsystems
Description
- Cooling, heating and fresh air supply from the window parapet while providing a high level of thermal comfort
- Spread of supply air flow by combining different air jets, with quick velocity decay, thus no tangential air patterns
- Improved air flow thanks to separated fresh air supply to the workplaces and facade screening
- Low vertical thermal stratification (< 1 K/m)
- Hygiene-tested to VDI 6022, part 1, VDI 3803, DIN EN 13779 and DIN 1946, part 4
- Heat exchanger cleanable from the front and the rear (to VDI 6022). The large fin spacing obviates the need for a filter.
Downloads
E2.5.1.9_IG-K-SB_Combijet parapet unit
