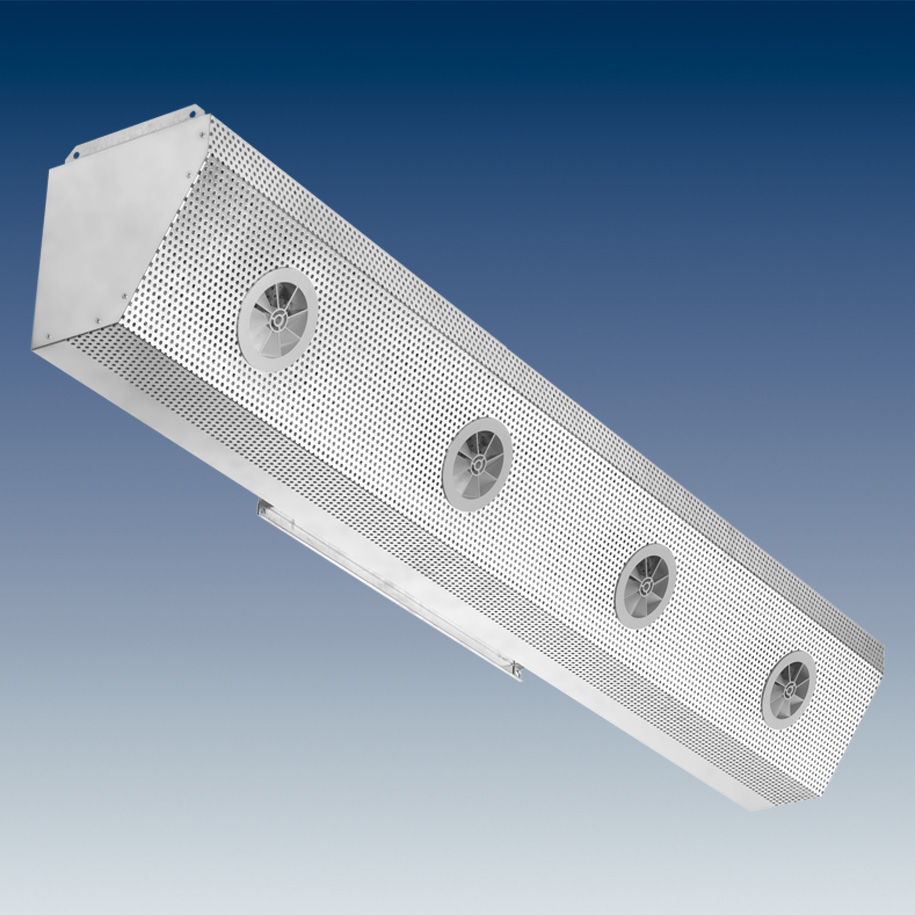

Semi-trapezoidal displacement outlet VA-TH

Product specification

  • Semi-trapezoidal displacement outlet VA-TH

    For factories with airborne dust, aerosols or fibres and permanent cooling.
    • Volume flow rate range: 70 – 415 l/(s•m) [250 – 1 500 m³/(h•m)]
    • ​Width: 250 and 500 mm
    • ​Length: ​1 200, 1 500 and 1 800 mm
    • Coverage zone of
    • supply air jets: ​
    • 2 – 3 m

  • Video

    Play Video

  • Category

    Air outlets - Displacement industrial sector

Description

  • Low-turbulence displacement flow
  • Installation along a wall or row of pillars; supply air intake through connection spigot positioned at the top or at the back, rectangular or circular
  • For applications with permanent cooling
  • Discharge direction from horizontal flow to vertical downflow
  • Discharge height 3 to 4 m
