Contact cooling ceiling system KKS-4/GK, for gypsum board ceilings

Product specification

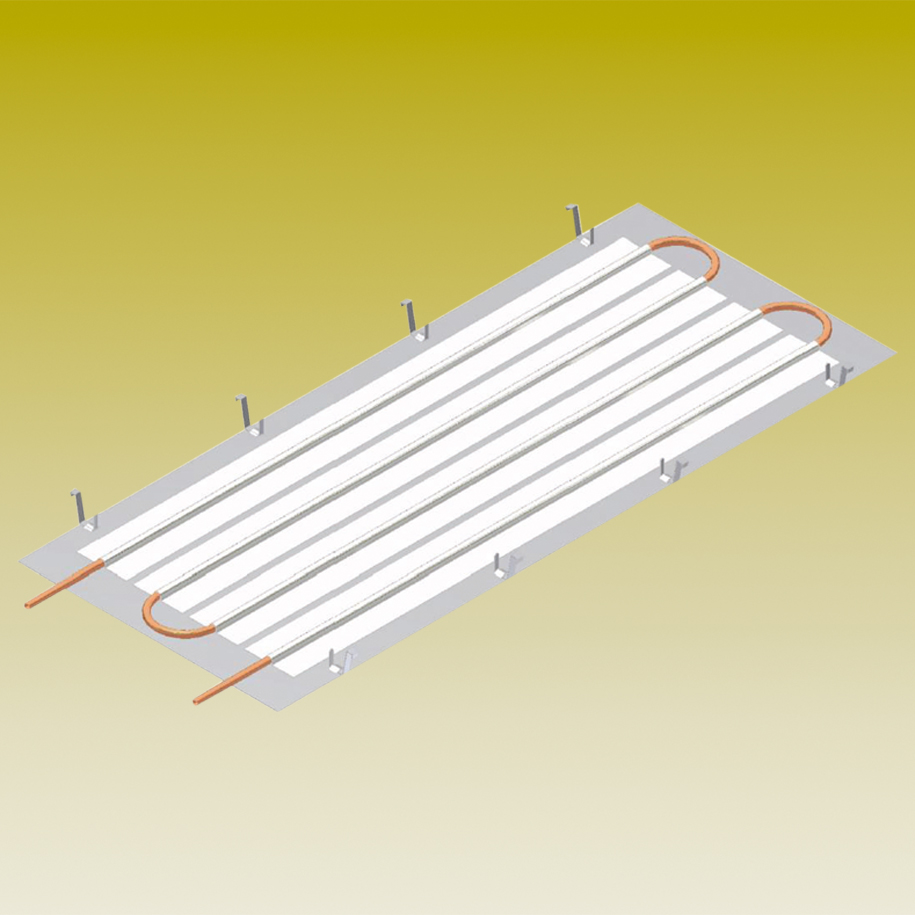

  • Contact cooling ceiling system KKS-4/GK, for gypsum board ceilings

    Provided for combination with perforated or unperforated gypsum board panels (and matching suspension structure) from various manufacturers to produce radiant cooling or heating ceilings. The cooling elements are fitted into the suspension structure.​
    • Nominal length: ​500 mm to 2 500 mm
    • ​Nominal width:
    • unperforated: 420 mm
    • perforated: 250 mm
    • ​Overall system height: ​≥ 80 mm
    • ​Connection type: ​press fitting

  • Category

    - Ceiling systems

Description

  • Heat transfer largely by radiation, with very high thermal comfort as a result
  • Standard cooling output up to 89 W/m² (at 10 K delta T) for KKS-4 elements combined with thermal gypsum board panels (to DIN EN 14240)
  • Also suitable for heating
  • Sound-absorbing types available

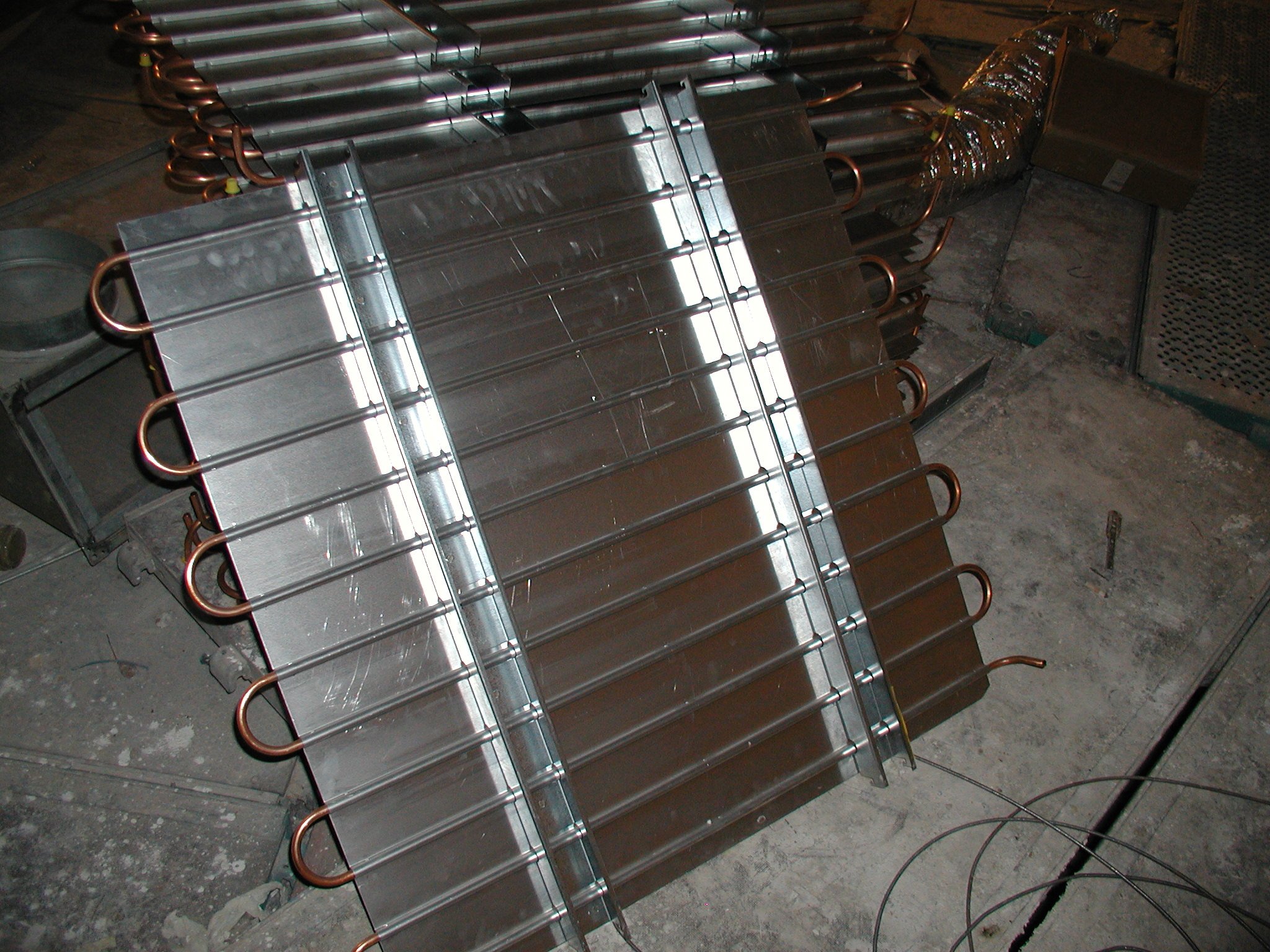

  • The core of the system is copper serpentine pipework with an Al heat conducting plate, thus long lifetime and assured quality; operating pressure 6 bars (higher values subject to enquiry)

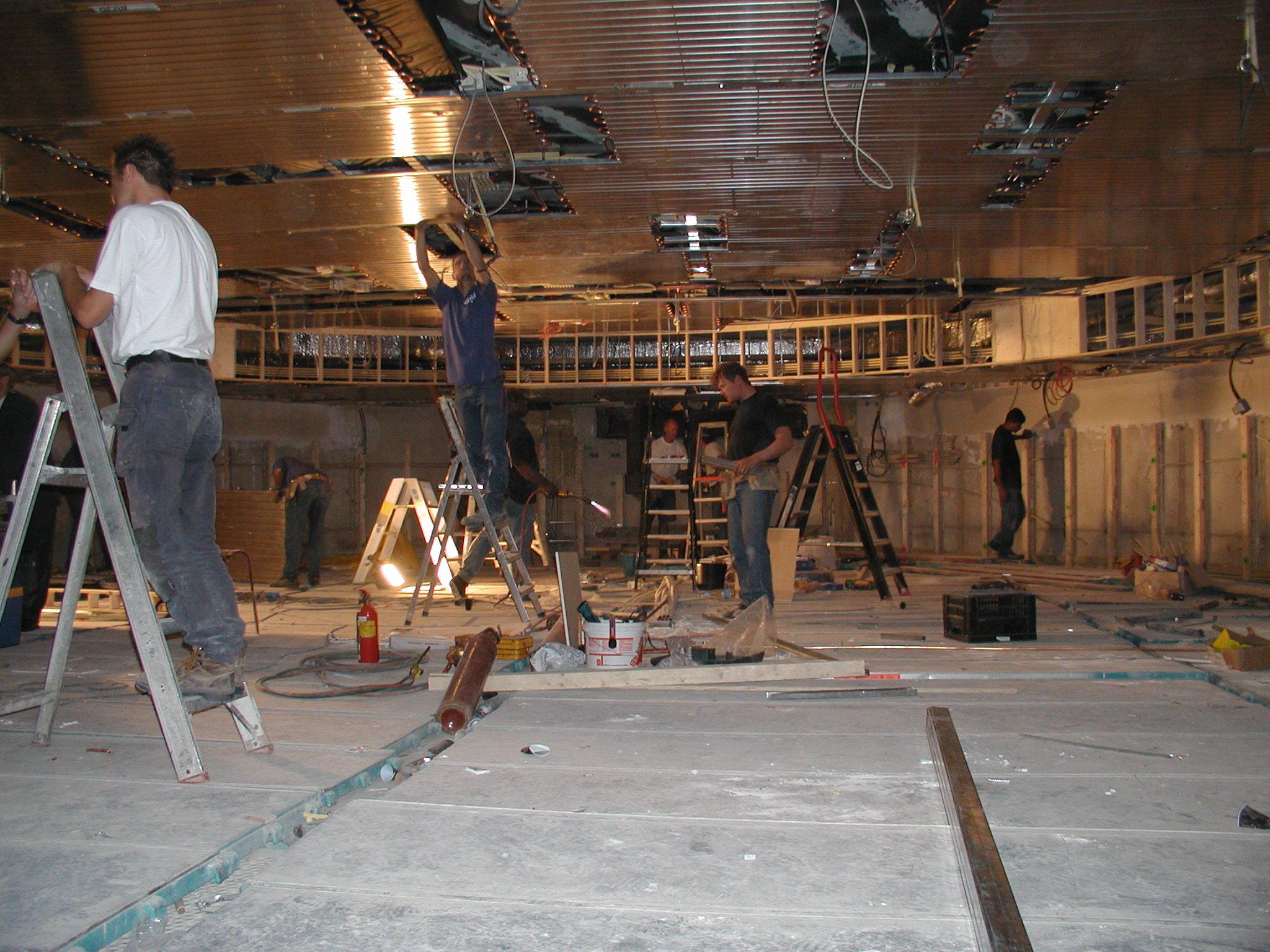

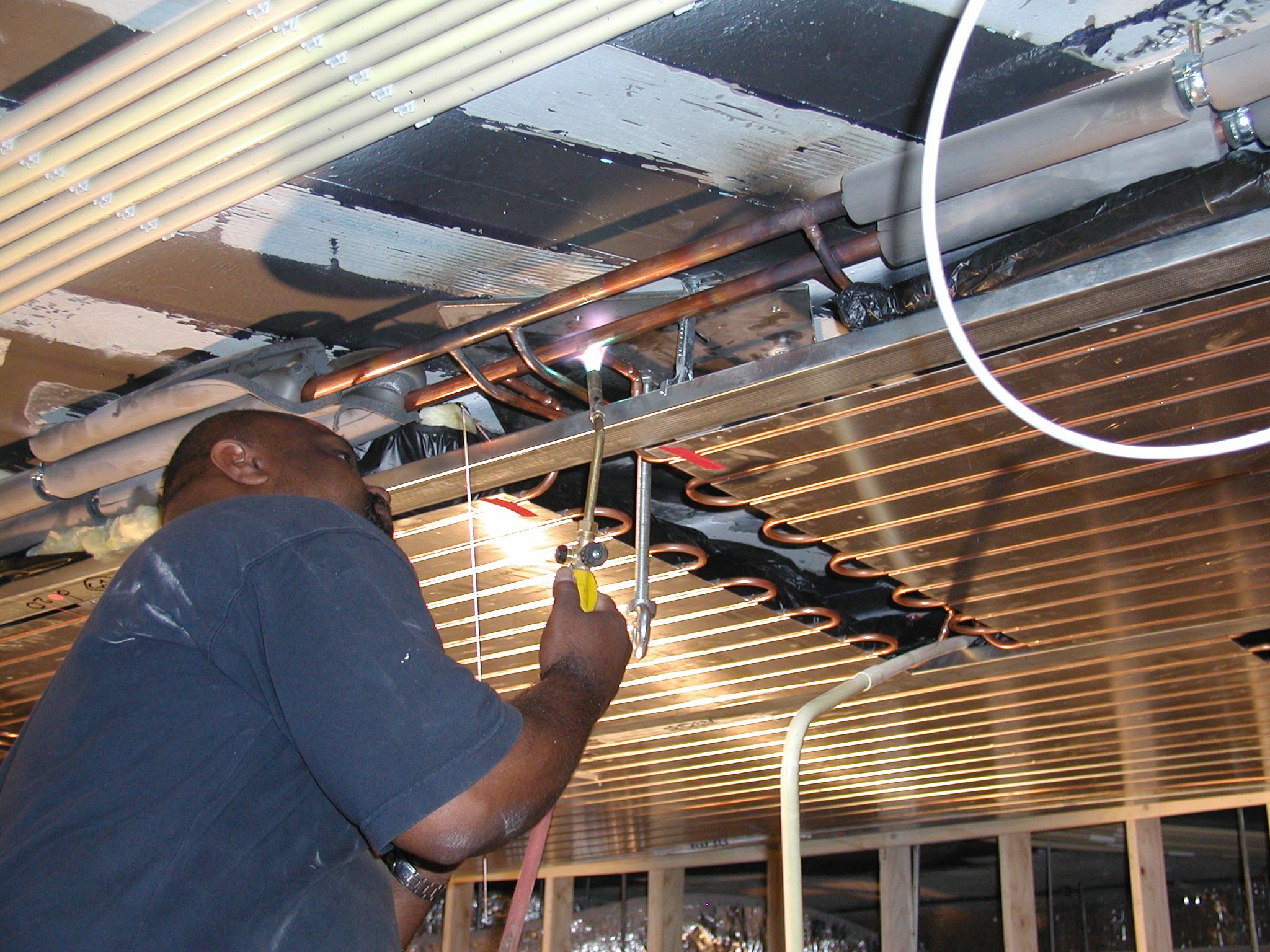

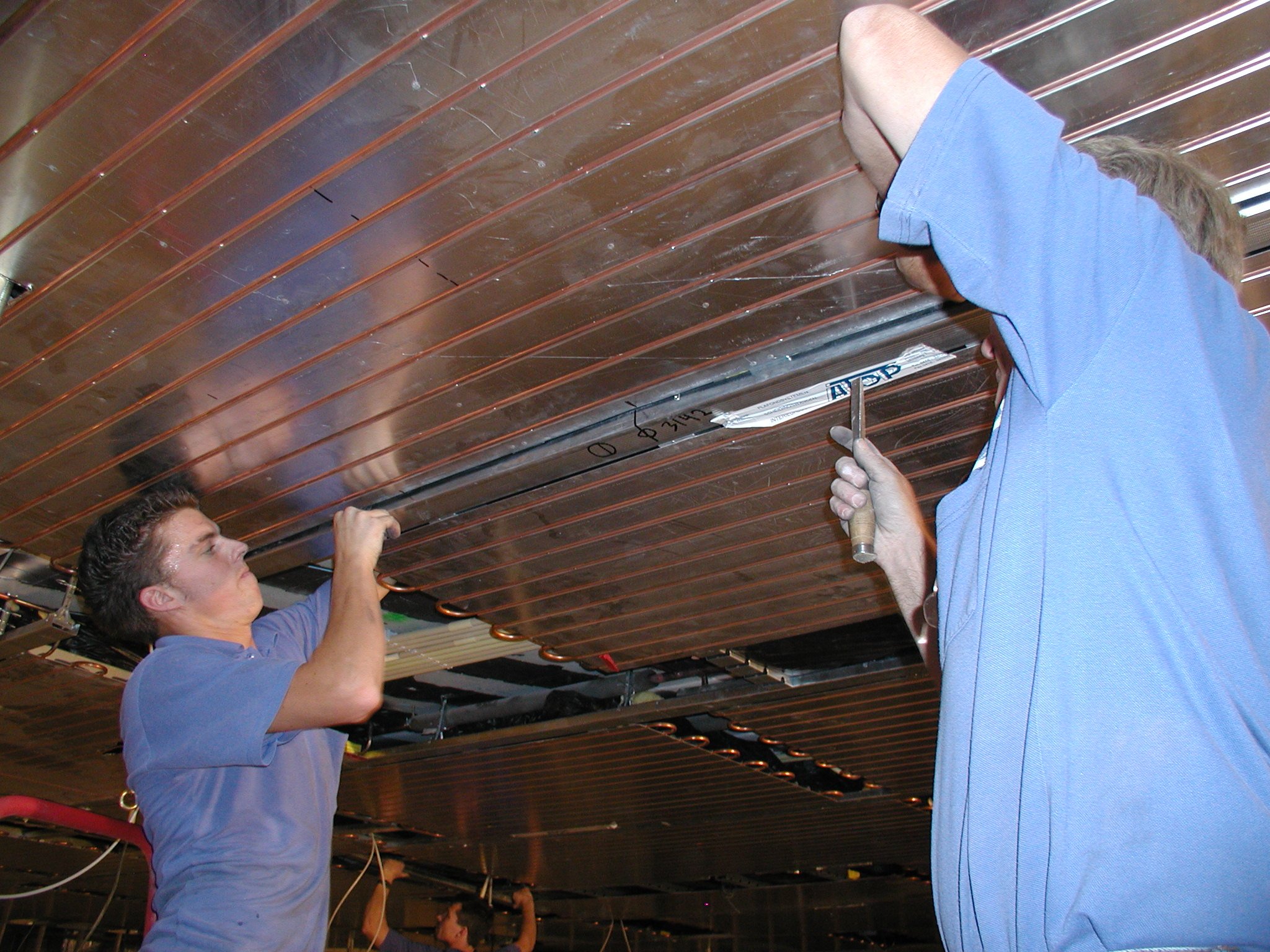

  • Easy and safe installation according to professional methods in use in building services and drywall construction
  • No combustible components

Downloads

E2.2.2_KKS-4-GK_Contact cooling ceiling system

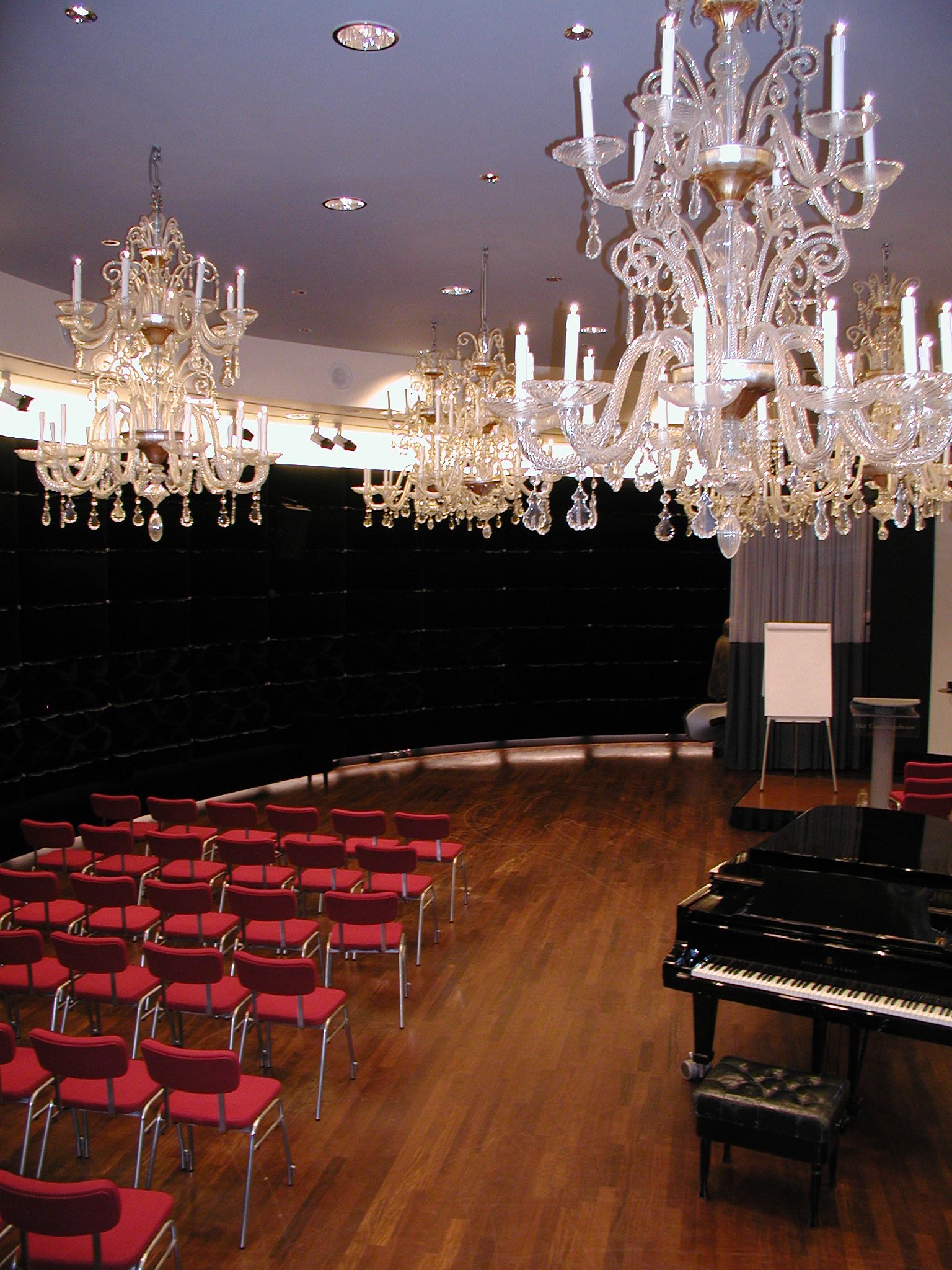

Productfoto’s
