Adjustable induction outlet – IN-V

Product specification

  • Adjustable induction outlet – IN-V

    ​For installation flush with ceiling and where manual adjustment of discharge direction is required.
    • Volume flow rate range: ​2.8 – 110 l/(s•m) [10 – 400 m³/(h•m)]
    • ​Element width: 15 or 28 mm
    • ​Lengths: 1 050, 1 200, 1 350 and 1 500 mm
    • ​Discharge height: 2.5 – 5 m

  • Video

    Play Video

  • Category

    Air outlets - Ceiling

Description

  • Stable single jets with alternate or one-sided discharge, for all ceilings
  • Discharge direction adjustment from horizontal to nearly vertical
  • Type IN-V2: element width: 28 mm per row; also available in 2, 3 or 4 rows
  • Tpye IN-V3: element width: 15 mm; 1 row
  • With connection box and circular connection spigot
  • Also available as return air inlet

Downloads

E1.1.9_IN-V_Adjustable induction outlet

D1.1.9_IN-V_Verstellbarer_Induktivauslass_04.2013_cav

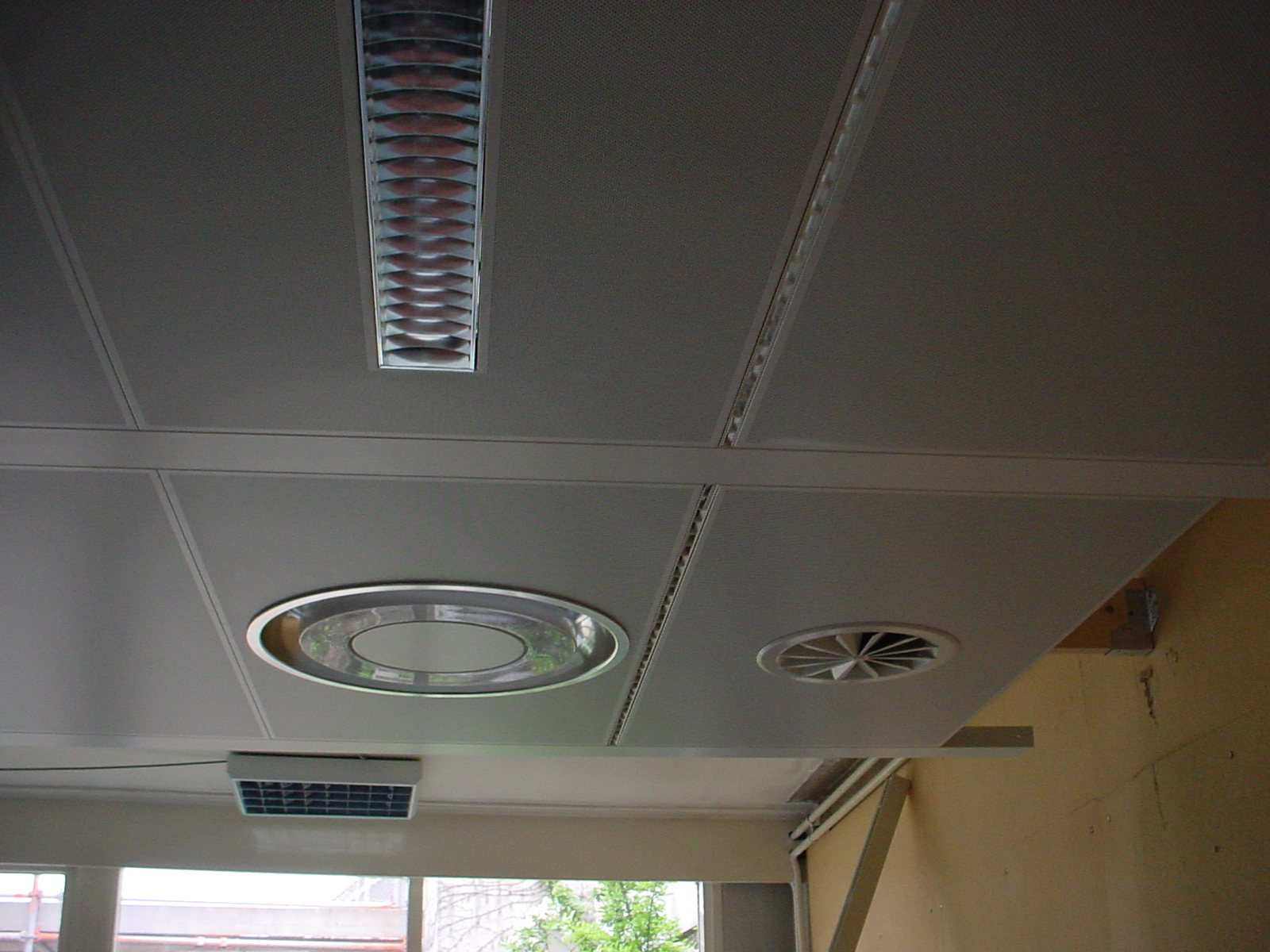

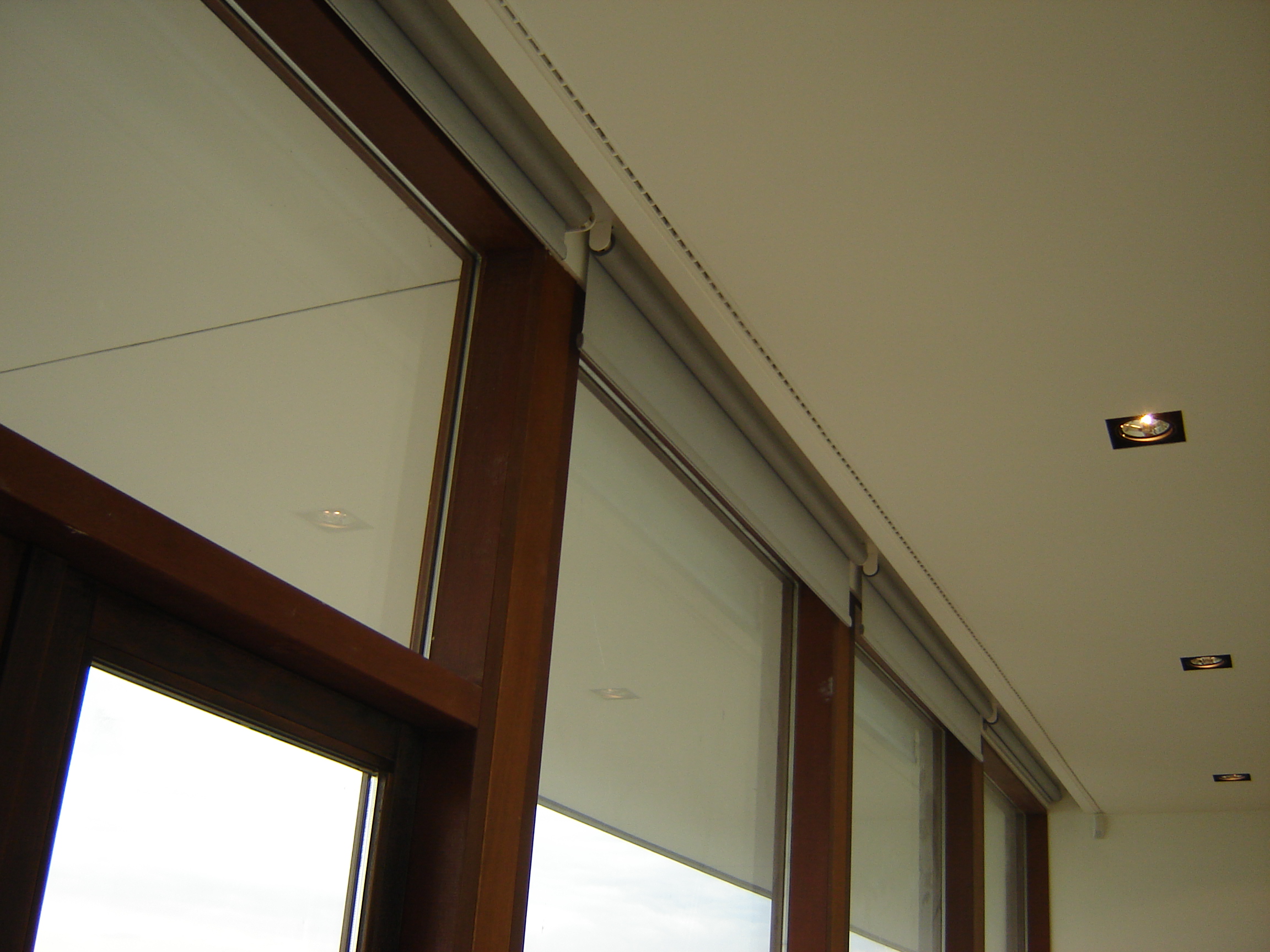

Productpictures
