Product specification
-

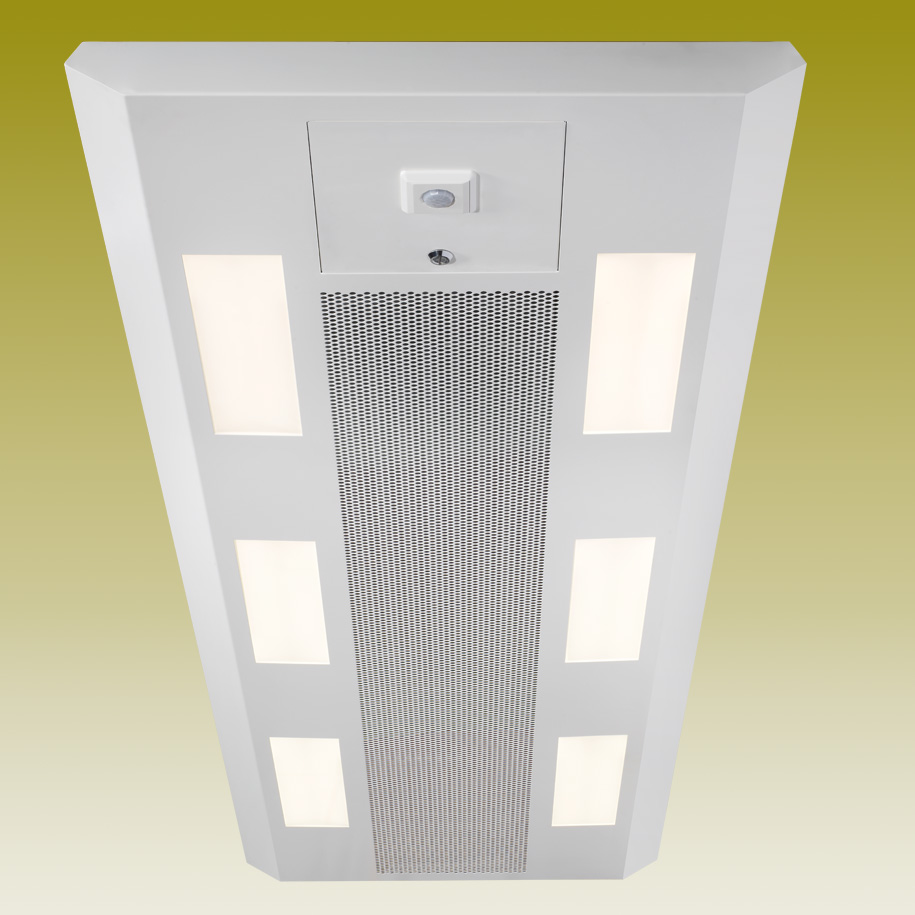

Chilled beam LuxCool
LuxCool is an innovative chilled beam developed by Krantz Components. It combines the proven technology of our ceiling induction units with a new design which can incorporate ceiling services such as lighting, presence detectors, etc. Thanks to sophisticated construction design LuxCool achieves high cooling and heating outputs at a low sound power level.- Length 2 700 mm
- Width: 800 mm
-
Category
- Chilled beams - Cool- and heatingsystems
Description
- For cooling and heating
- Cooling output: 1 750 W for unit length (Delta Twater = 10 K, Delta Tair = 8 K)
- Heating output: 936 W for unit length (Delta Twater = 15 K)
- Fresh air supply
- Primary air volume flow rate 2.8 to 36 l/s [10 to 130 m³/h]
- Can incorporate ceiling services such as lighting, presence detectors, etc.
- Customized solutions
- Suitable for retrofit applications
- Compact unit
- Easy and quick installation
